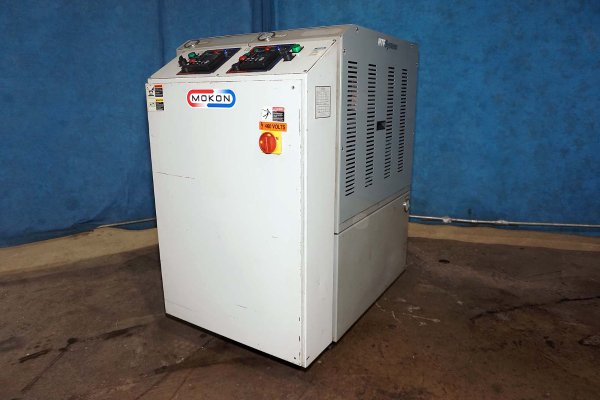

Used Mokon Model: H64212-E9 24 kW (12 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

1 / 39

Status	Sold
Manufacturer	Mokon
Model	H64212-E9
Size	24 kW (12 kW per zone)
Inventory Number	DCM-5739

Mokon - H64212-E9 24 kW (12 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Barber Coleman Controls

View Available Hot Oil Units

See available Hot Oil Units Print PDF Play Video

Questions? Call (847) 360-9170 and mention DCM-5739.

Features & Accessories

Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
Mokon 600 Series Dependability
Barber Coleman Microprocessor Controller
Built-in pump pressure relief valve
Equipped with Water Cooling Circuit
Unit on casters for easy movement

Item Specifications for DCM-5739

	US	Metric
TOTAL KW:	24 KW	24 KW
Main Heater Power Zone 1:	12 kW	12 kW
Main Heater Power Zone 2:	12 KW	12 kW
Pump Motor Size Zone 1& 2:	2 HP	1.49 kW
Flow Rate Zone 1 & 2:	20 gallons per minute	75.7 liters per minute
Connection size/type Zone 1 & 2:	1 inch NPT	25.4 mm NPT
Maximum Operating Temperature:	600 degrees F	316 degrees C
Full Load Amps @ 460/3/60:	38.2 amp	38.2 amp
Overall Size (L x W x H):	41 x 30 x 51 inches	1041 x 762 x 1295 mm
Shipping Weight:	875 pounds	397 kg

Video

Documents

Mokon_Unit_Troubleshooting_GuidePDF · 196 KB
Mokon_Heater_Troubleshooting_GuidePDF · 187 KB
Mokon_HTF_System_Instruction_Manual_H4_H5_H6_MK_HC_XCPDF · 883 KB
Mokon_Schematic_Drawing_Model_H64212E9_SN_51684PDF · 209 KB

Description

Used, Mokon Model H64212-E9 24 kW (12 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Mokon 600 Series Dependability, Barber Coleman Microprocessor Controller, Built-in pump pressure relief valve, Equipped with Water Cooling Circuit, Unit on casters for easy movement, Barber Coleman controls, second Hand, DCM-5739
