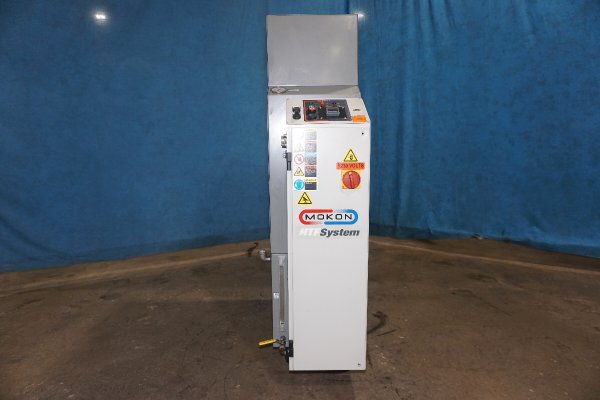

Used Mokon Model: H42112VD 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerMokon
ModelH42112VD
Size24 kW
Inventory NumberDCM-5689

Mokon - H42112VD 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3208 Microprocessor Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5689.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • Eurotherm 3216 Microprocessor Controller
  • Equipped with Water Cooling Circuit & Built-in pump pressure relief valve
  • Mokon Dependability
  • Unit on casters for easy movement
  • HTF 500 Series

Item Specifications for DCM-5689

USMetric
Main Heater Power (Zone #1):24 KW24 KW
Pump Motor Size (Zone #1):1 HP.74 KW
Maximum Operating Temperature:500 degrees F260 degrees C
Flow Rate (Zone #1):10 gallons per minute37.85 liters per minute
Connection size/type:3/4 inch NPT3/4 inch NPT
Full Load Amps @ 230/3/60:33.89 AMPS33.89 AMPS
Overall Size (L x W x H):36 x 21 x 57 inches914 x 533 x 1448 mm
Approximate Shipping Weight:494 lbs224 kg

Video

Description

Used, Mokon Model H42112VD 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Eurotherm 3216 Microprocessor Controller, Equipped with Water Cooling Circuit & Built-in pump pressure relief valve, Mokon Dependability, Unit on casters for easy movement, HTF 500 Series, Eurotherm 3208 Microprocessor controls, second Hand, DCM-5689

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
