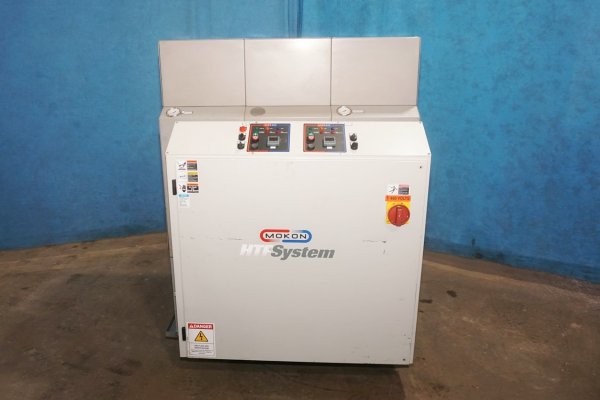

Used Mokon Model: H64230OP 60 kW (30 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

Used Mokon Model: H64230OP 60 kW (30 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit1 / 50
StatusSold
ManufacturerMokon
ModelH64230OP
Size60 kW (30 kw per zone)
Inventory NumberDCM-5677

Mokon - H64230OP 60 kW (30 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls

View Available Hot Oil Units

See available Hot Oil UnitsPrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-5677.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • HTF 600 Series - Extended Temperature Capablity
  • Eurotherm 3216 Microprocessor Controllers
  • Built-in pump pressure relief valve
  • Equipped with Water Cooling Circuit
  • Unit on casters for easy movement

Item Specifications for DCM-5677

USMetric
TOTAL KW:60 KW60 KW
Main Heater Power Zone 1 & 2:30 KW30 kW
Pump Motor Size Zone 1 & 2:2 HP @ 1,175 RPM1.49 KW @ 1,175 RPM
Flow Rate Zone 1 & 2:20 gallons per minute75 liters per minute
Connection size/type Zone 1 & 2:1 inch NPT1 inch NPT
Maximum Operating Temperature:600 degrees F315 degrees C
Full Load Amps @ 460/3/60:81.6 amp81.6 amp
Reservoir Capacity:58 gallons220 Liters
Overall Size (L x W x H):41 x 30 x 62 inches1041 x 762 x 1575 mm
Shipping Dimensions:60 x 48 x 68 inches1524 x 1219 x 1727 mm
Shipping Weight:1,501 pounds681 kg

Video

Documents

Description

Used, Mokon Model H64230OP 60 kW (30 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 600 Series - Extended Temperature Capablity, Eurotherm 3216 Microprocessor Controllers, Built-in pump pressure relief valve, Equipped with Water Cooling Circuit, Unit on casters for easy movement, Eurotherm 3216 controls, second Hand, DCM-5677

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
