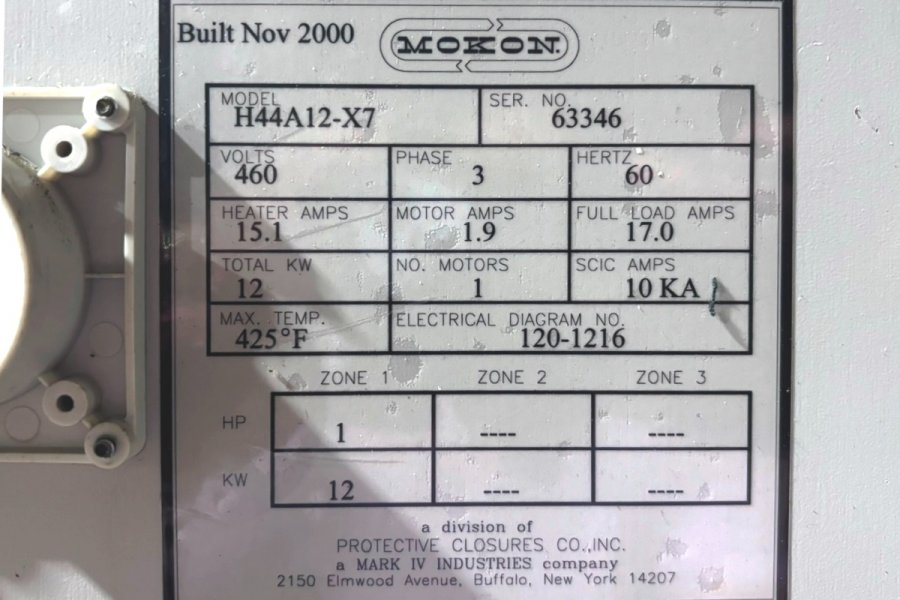

Used Mokon Model: H44A12-X7 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 30| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H44A12-X7 |
| Size | 12 KW |
| Inventory Number | DCM-5655 |
Mokon - H44A12-X7 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3204 Controls
Questions? Call (847) 360-9170 and mention DCM-5655.
Features & Accessories
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- Barber-Colman Series 10 Controller
- Mokon Dependability
- Built-in pump pressure relief valve
- Equipped with Water Cooling Circuit
- HTF 500 Series
- Unit on casters for easy movement
Item Specifications for DCM-5655
| US | Metric | |
| Main Heater Power (Zone #1): | 12 KW | 12 KW |
| Pump Motor Size (Zone #1): | 1 HP @ 1145 RPM | .74 kW @ 1145 RPM |
| Flow Rate (Zone #1): | 10 gallons per minute | 37.85 liters per minute |
| Connection size/type (Zone #1): | 3/4 inch NPT | 19.05 mm NPT |
| Maximum Operating Temperature: | 425 degrees F | 218 degrees C |
| Overall Size (L x W x H): | 43 x 16 x 50 inches | 1092 x 406 x 1270 mm |
| Full Load Amps @ 460/3/60: | 17.0 amp | 17.0 amp |
| Weight: | 494 lbs | 224 kg |
Video
Description
Used, Mokon Model H44A12-X7 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Barber-Colman Series 10 Controller, Mokon Dependability, Built-in pump pressure relief valve, Equipped with Water Cooling Circuit, HTF 500 Series, Unit on casters for easy movement, Eurotherm 3204 controls, second Hand, DCM-5655
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
