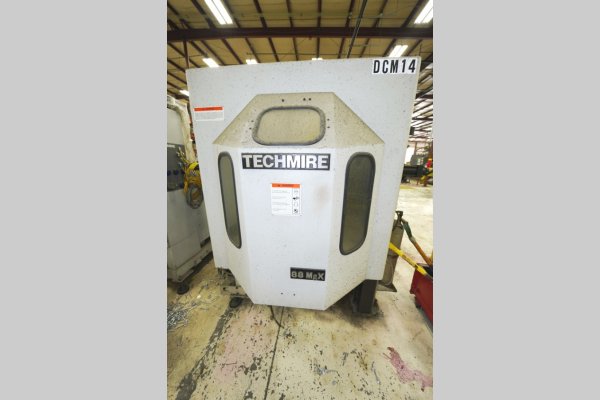

Used Techmire Model: 88 MGXR (8x8) 88 65 Ton Four Slide - Multi-Slide Hot Chamber Magnesium High Pressure Die Casting Machine Die Cast Maching
1 / 27| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 88 MGXR (8x8) |
| Size | 88 65 Ton |
| Inventory Number | DCM-5603 |
Techmire - 88 MGXR (8x8) 88 65 Ton Four Slide - Multi-Slide Hot Chamber Magnesium High Pressure Die Casting Machine Die Cast Maching, Techmire Controls
View Available Hot Chamber Multi-Slide
Questions? Call (847) 360-9170 and mention DCM-5603.
Features & Accessories
- New in 2016 - Research Machine - Very Low Hours
- Techmire 88 MGX Controls
- Techmire Electricaly Heated, Crucible Type Magnesium Melting/Holding Furance - 62 KW, 540 pound bath capacity, 250 pounds per hour melt rate wtih gas sheilding
- Two Slide Motions - Expandable up to six motions
- 20 Horsepower - 14.91 KW Main Pump Motor
- Pressurized Automatic Lubrication System - Oil Type
- Techmire 88 MGR (8x8) (8x10) (88) Die Casting Machines Manufactured in Montreal, Quebec Canada by Techmire
Item Specifications for DCM-5603
| US | Metric | |
| Standard Die Size | 8.07 x 10.04 inches | 205x 255 mm |
| Clamping Force | 65 tons | 58.6 tons |
| Stroke of Each Die Member | 3.15 | 80 mm |
| Total Die Opening | 6.3 inches | 160 mm |
| Maximum Ejector Stroke | 1.75 inches | 44.4 mm |
| Injection Plunger Diameter | 1.000 - 1.625 inches | 25.4 - 41.27 mm |
| Injection Cylinder Diameter | 3.25 inches | 82.55 mm |
| Injection Plunger Stroke | 4.72 inches | 120 mm |
| Injection Speed: | 57 IPS (Inches Per Second) | 1.43 Meters Per Second |
| Maximum Shot Weight (Magnesium) | 7.2 Ounces | 203 grams |
| Metal Pressure (maximum theoretical) | 4,000 psi | 275.8 bars |
| Dry Cycle Speed: | 2,100 Cycles Per Hour | 2,100 Cycles Per Hour |
Description
Used, Techmire Model 88 MGXR (8x8) 88 65 Ton Four Slide - Multi-Slide Hot Chamber Magnesium High Pressure Die Casting Machine Die Cast Maching For_Sale, Features Include: Techmire 88 MGX Controls, Techmire Electricaly Heated, Crucible Type Magnesium Melting/Holding Furance - 62 KW, 540 pound bath capacity, 250 pounds per hour melt rate wtih gas sheilding, Two Slide Motions - Expandable up to six motions, 20 Horsepower - 14.91 KW Main Pump Motor, Pressurized Automatic Lubrication System - Oil Type, Techmire 88 MGR (8x8) (8x10) (88) Die Casting Machines Manufactured in Montreal, Quebec Canada by Techmire, Techmire controls, second Hand, DCM-5603
