SOLD

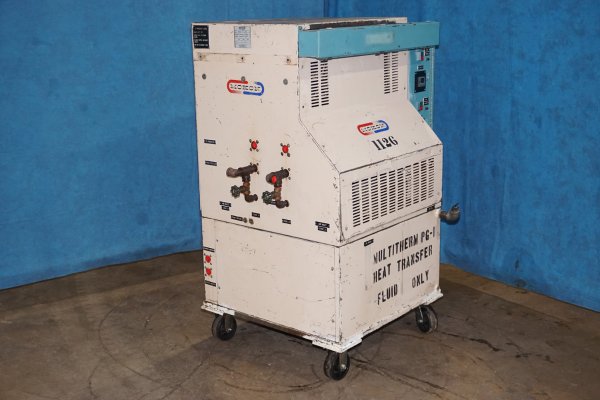

Used Mokon Model: MK4S09-ET 18 kW (9 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerMokon
ModelMK4S09-ET
Size18 kW (9 kW per zone)
Inventory NumberDCM-5569

Mokon - MK4S09-ET 18 kW (9 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5569.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • Eurotherm 3216 Controllers
  • Water Cooling Circuit for Process Cooling
  • Built-in pump pressure relief valve
  • Unit is on casters for easy movement

Item Specifications for DCM-5569

USMetric
TOTAL KW:18 kW18 kW
Main Heater Power Zone 1 & 2:9 kW9 kw
Pump Motor Size Zone 1 & 2:2 HP1.5 kw
Flow Rate:20 gallons per minute75.70 liters per minute
Maximum Rate Operating Temperature:500 Degrees Fahrenheit260 Celsius
Full Load Amps @ 460/3/60:26.0 Amps26.0 Amps
Shipping Dimensions: (L x W x H):50 x 38 x 60 inches1270 x 965 x 1524 mm
Shipping Weight:870 lbs395 kg

Video

Documents

Description

Used, Mokon Model MK4S09-ET 18 kW (9 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Eurotherm 3216 Controllers, Water Cooling Circuit for Process Cooling, Built-in pump pressure relief valve, Unit is on casters for easy movement, Eurotherm 3216 controls, second Hand, DCM-5569

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
