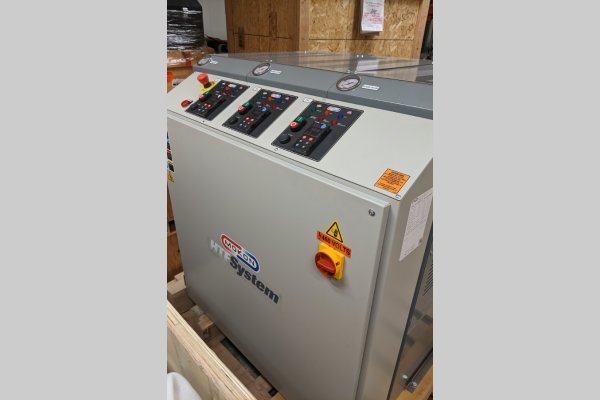

Used Mokon Model: H44C06AKC 18 kW (6 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H44C06AKC |
| Size | 18 kW (6 kW per zone) |
| Inventory Number | DCM-5535 |
Mokon - H44C06AKC 18 kW (6 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Watlow Controls
Questions? Call (847) 360-9170 and mention DCM-5535.
Features & Accessories
- New in 2022 - Never been Used - Still in it's original crate
- Watlow Controllers
- Water Cooling Circuit
- Built-in pump pressure relief valve
- Unit on casters for easy movement
- Mokon Dependability
Item Specifications for DCM-5535
| US | Metric | |
| Main Heater Power (Zone #1, 2, 3): | 6 KW | 6 KW |
| Pump Motor Size (Zone #1, 2, 3): | 1 HP | .74 KW |
| Flow Rate (Zone #1, 2, 3): | 10 gallons per minute | 37.8 liters per minute |
| Connection size/type (Zone #1, 2, 3): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Full Load Amps @ 460/3/60: | 29 amp | 29 amp |
| Overall Size (L x W x H): | 41 x 30 x 61 inches | 1041 x 762 x 1549 mm |
| Shipping Dimensions: | 65 x 48 x 65 inches | 1651 x 1219 x 1651 mm |
| Shipping Weight: | 1,267 pounds | 574 kg |
Description
Used, Mokon Model H44C06AKC 18 kW (6 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Watlow Controllers, Water Cooling Circuit, Built-in pump pressure relief valve, Unit on casters for easy movement, Mokon Dependability, Watlow controls, second Hand, DCM-5535
