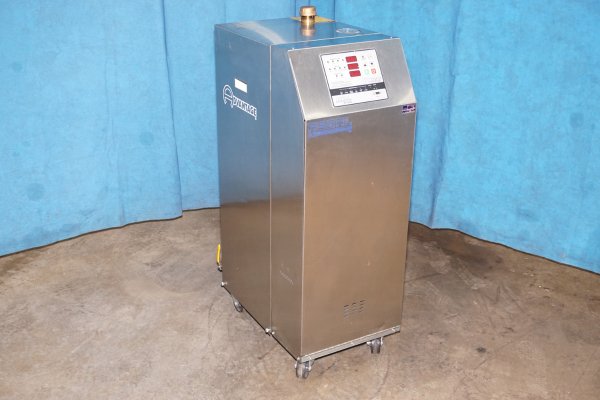

Used Advantage Model: RK-1230HCM-41D3 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 30| Status | Sold |
|---|---|
| Manufacturer | Advantage |
| Model | RK-1230HCM-41D3 |
| Size | 12 kW |
| Inventory Number | DCM-5515 |
Advantage - RK-1230HCM-41D3 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Regal HE 2000 Microprocessor Controls
View Available Temperature Control Units
Questions? Call (847) 360-9170 and mention DCM-5515.
Features & Accessories
- Regal HE 2000 Series Microprocessor Controller
- Water Cooling Circuit
- Built-in pump pressure relief valve
- Unit on casters for easy movement
- Water Cooled Pump
Item Specifications for DCM-5515
| US | Metric | |
| Main Heater Power (Zone #1): | 12 KW | 12 KW |
| Pump Motor Size (Zone #1): | 1 HP | .75 KW |
| Flow Rate (Zone #1): | 30 gallons per minute | 113 liters per minute |
| Connection size/type (Zone #1): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Overall Size (L x W x H): | 31 x 16.5 x 56 inches | 787 x 419 x 1422 mm |
| Weight: | 440 pounds | 199.581 kg |
| Full Load Amps @ 460/3/60: | 16.1 amp | 16.1 amp |
Video
Documents
- Advantage RKHE ManualPDF · 1.1 MB
Description
Used, Advantage Model RK-1230HCM-41D3 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Regal HE 2000 Series Microprocessor Controller, Water Cooling Circuit, Built-in pump pressure relief valve, Unit on casters for easy movement, Water Cooled Pump, Regal HE 2000 Microprocessor controls, second Hand, DCM-5515
