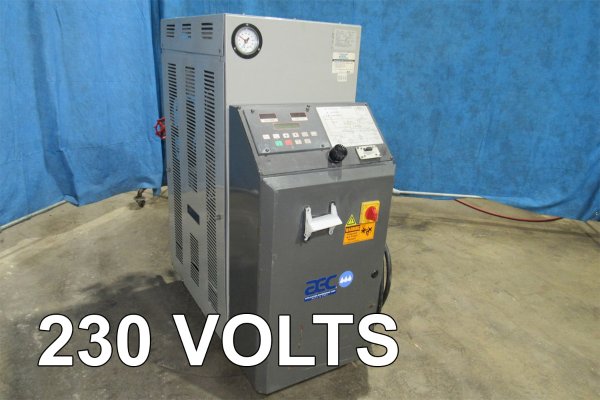

Used AEC Model: TCO-1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit

StatusSold
ManufacturerAEC
ModelTCO-1
Size12 KW
Inventory NumberDCM-5496

AEC - TCO-1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit, Microprocessor Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5496.

Features & Accessories

  • AEC Microprocessor Controller
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference

Item Specifications for DCM-5496

USMetric
Main Heater Power (Zone #1):12 KW12 KW
Pump Motor Size (Zone #1):1 HP.75 KW
Connection size/type (Zone #1):1 NPT25.4 mm
Flow Rate (Zone #1):18 GPM68.1 LPM
Maximum Operating Temperature:550 degrees F287 degrees C
Full Load Amps @ 230/3/60:33.7 Amps33.7 Amps
Motor:RPMRPM
Overall Size (D x W x H):42 x 19 x 46 inches1067 x 483 x 1168 mm
download600 pounds273 kg

Video

Documents

Description

Used, AEC Model TCO-1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: AEC Microprocessor Controller, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Microprocessor controls, second Hand, DCM-5496

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
