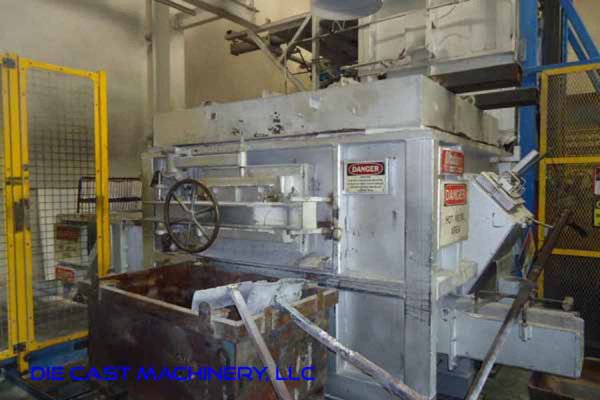

Used Modern Equipment Model: AL-2500 Jet Melter 2500 Pounds per hour of aluminum Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace
1 / 24| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Modern Equipment |
| Model | AL-2500 Jet Melter |
| Size | 2500 Pounds per hour of aluminum |
| Inventory Number | DCM-5494 |
Modern Equipment - AL-2500 Jet Melter 2500 Pounds per hour of aluminum Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace, Honeywell Controls
View Available Stack Melting Furnaces
Questions? Call (847) 360-9170 and mention DCM-5494.
Features & Accessories
- Complete Aluminum Central Melt System with Automated Ingot Bundling Handling and Automatic Scrap Car Loading
- High energy efficiency - As low as 1,000 BTU per pound of Melt
- Reduced melt loss - less than 1%
- High Quality Metal - Lower gas and inclusion levels
- Tight Temperature Control +/18 degrees F
- State-of-the-art programmable controls with graphic interface
- Fully automated material handling, batching and charging systems
Item Specifications for DCM-5494
| US | Metric | |
| Model: | AL-2500 | AL-2500 |
| Melt Rate: | 2500 pounds per hour | 1133.98 kilograms per hour |
| Total Molten Aluminum Capacity: | 8,850 pounds | 4,015 kilograms |
| Dip Well Capacity: | 1593 pounds | 724 KG |
| Melting Burners: | 2 melting @ 1,050,000 each | 2 melting - 1 holding |
| Holding Burner: | 1 holding @ 900,000 BTU | 2,100,000 & 900,000 BTU |
| Total BTU (melting & holding: | 3,000,000 | 3,000,000 |
| Bottom Tap for draining furnace: | Yes | Yes |
| Loader for Ingot & Scrap: | Yes | Yes |
| Scrap & Ingot Loading Carts: | Yes | Yes |
| Fuel: | Natural Gas | Natural Gas |
Video
Description
Used, Modern Equipment Model AL-2500 Jet Melter 2500 Pounds per hour of aluminum Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace For_Sale, Features Include: High energy efficiency - As low as 1,000 BTU per pound of Melt, Reduced melt loss - less than 1%, High Quality Metal - Lower gas and inclusion levels, Tight Temperature Control +/18 degrees F, State-of-the-art programmable controls with graphic interface, Fully automated material handling, batching and charging systems, Honeywell controls, second Hand, DCM-5494
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
