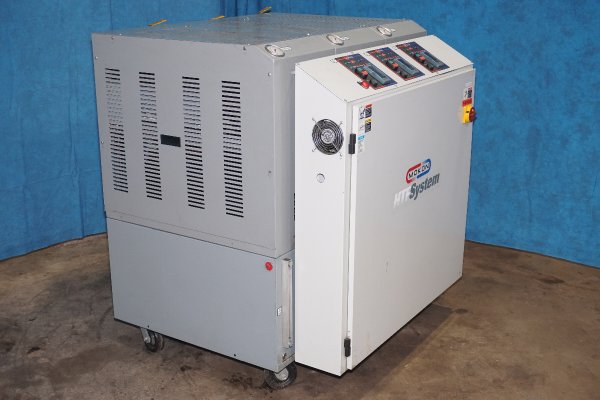

Used Mokon Model: H44306NZ 18 kW (6 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 20| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H44306NZ |
| Size | 18 kW (6 kW per zone) |
| Inventory Number | DCM-5465 |
Mokon - H44306NZ 18 kW (6 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3208 Controls
Questions? Call (847) 360-9170 and mention DCM-5465.
Features & Accessories
- Eurotherm 3208 Controller
- Water Cooling Circuit
- Built-in pump pressure relief valve
- Unit on casters for easy movement
- Mokon Dependability
Item Specifications for DCM-5465
| US | Metric | |
| Main Heater Power (Zone #1, 2, 3): | 6 KW | 6 KW |
| Pump Motor Size (Zone #1, 2, 3): | 1 HP | .74 KW |
| Flow Rate (Zone #1, 2, 3): | 10 gallons per minute | 37.8 liters per minute |
| Connection size/type (Zone #1, 2, 3): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Full Load Amps @ 460/3/60: | 28.1 amp | 28.1 amp |
| Overall Size (L x W x H): | 41 x 30 x 61 inches | 1041 x 762 x 1549 mm |
| Shipping Dimensions: | 65 x 48 x 65 inches | 1651 x 1219 x 1651 mm |
| Shipping Weight: | 1,267 pounds | 574 kg |
Video
Documents
Description
Used, Mokon Model H44306NZ 18 kW (6 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Eurotherm 3208 Controller, Water Cooling Circuit, Built-in pump pressure relief valve, Unit on casters for easy movement, Mokon Dependability, Eurotherm 3208 controls, second Hand, DCM-5465
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
