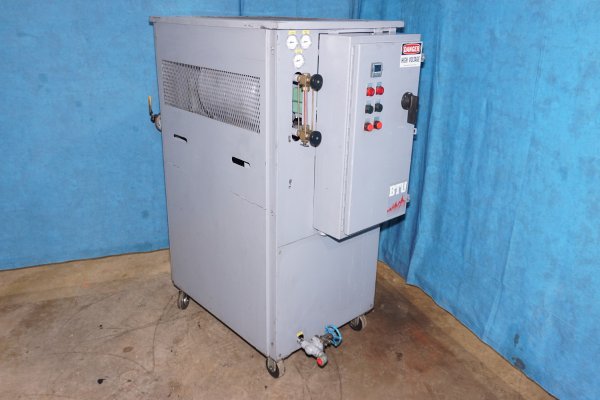

Used Budzar Industries Model: 1NP-1815-GOLSP 18 KW Negative Pressure Hot Oil Temperature Control Unit with Water Cooling Circuit

StatusSold
ManufacturerBudzar Industries
Model1NP-1815-GOLSP
Size18 KW
Inventory NumberDCM-5444

Budzar Industries - 1NP-1815-GOLSP 18 KW Negative Pressure Hot Oil Temperature Control Unit with Water Cooling Circuit, Eurotherm 3216 Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5444.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • Can be used as a standard Hot Oil Temperature Control Unit or as an 18 kw Negative Pressure Mold Temperature Control Unit - Negative Pressure units are commonly used when molds, dies or tooling are cracked.
  • High Capacity/High Efficiency Plate Type Heat Exchanger with Water Cooling Circuit for Rapid Cool-Down of Process Temperature
  • Portable Design - Unit mounted on four casters for easy positioning
  • Long-Life Viking Pump
  • Equipped with Eurotherm 3216 Digital Temperature Controller

Item Specifications for DCM-5444

USMetric
Main Heater Power:18 kW18 kW
Pump Motor Size:1 HP @ 1,725 RPM.75 kw @ 1,725 RPM
Flow Rate:15 GPM56.7 liters per minute
Connection size/type:1 Inch NPT (national pipe thread)1 inch NPT (national pipe thread)
Maximum Operating Temperature:350 degrees Fahrenheit176 Celsius
Full Load Amps @ 460/3/60:26 amps26 amps
Overall Size (L x W x H):62 x 27 x 60 Inches1574 x 686 x 1524 mm
Shipping Weight:922 lbs418 kg
Negative Pressure Capability:YesYes
Negative Pressure Capability (approximate):28 hg column28 hp column

Video

Description

Used, Budzar Industries Model 1NP-1815-GOLSP 18 KW Negative Pressure Hot Oil Temperature Control Unit with Water Cooling Circuit For_Sale, Features Include: Can be used as a standard Hot Oil Temperature Control Unit or as an 18 kw Negative Pressure Mold Temperature Control Unit - Negative Pressure units are commonly used when molds, dies or tooling are cracked., High Capacity/High Efficiency Plate Type Heat Exchanger with Water Cooling Circuit for Rapid Cool-Down of Process Temperature, Portable Design - Unit mounted on four casters for easy positioning, Long-Life Viking Pump, Equipped with Eurotherm 3216 Digital Temperature Controller, Eurotherm 3216 controls, second Hand, DCM-5444
