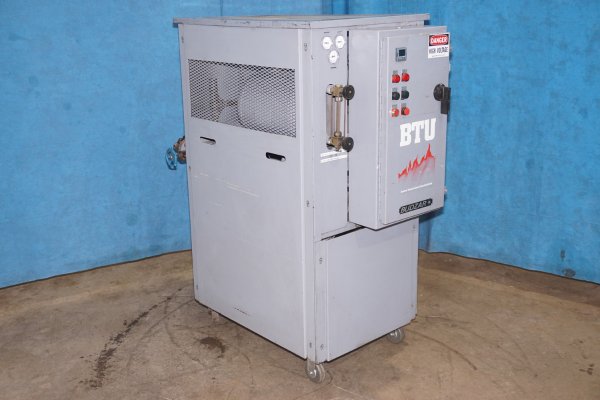

Used Budzar Industries Model: 1NP-1820-GOLSP 18 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 31| Status | Sold |
|---|---|
| Manufacturer | Budzar Industries |
| Model | 1NP-1820-GOLSP |
| Size | 18 KW |
| Inventory Number | DCM-5438 |
Budzar Industries - 1NP-1820-GOLSP 18 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls
Questions? Call (847) 360-9170 and mention DCM-5438.
Features & Accessories
- Can be used as a standard Hot Oil Temperature Control Unit or as an 18 kw Negative Pressure Mold Temperature Control Unit - Negative Pressure units are commonly used when molds, dies or tooling are cracked.
- Equipped with Eurotherm 3216 Digital Temperature Controller
- High Capacity/High Efficiency Plate Type Heat Exchanger with Water Cooling Circuit for Rapid Cool-Down of Process Temperature
- Portable Design - Unit mounted on four casters for easy positioning
- Long-Life Viking Pump
Item Specifications for DCM-5438
| US | Metric | |
| Main Heater Power: | 18 kW | 18 kW |
| Pump Motor Size: | 1 HP @ 1,725 RPM | .75 kw @ 1,725 RPM |
| Flow Rate: | 20 GPM | 75.7 liters per minute |
| Connection size/type: | 1 Inch NPT (national pipe thread) | 1 inch NPT (national pipe thread) |
| Maximum Operating Temperature: | 350 degrees Fahrenheit | 176 Celsius |
| Full Load Amps @ 460/3/60: | 35 amps | 35 amps |
| Overall Size (L x W x H): | 62 x 27 x 60 Inches | 1574 x 686 x 1524 mm |
| Shipping Weight: | 922 lbs | 418 kg |
Video
Description
Used, Budzar Industries Model 1NP-1820-GOLSP 18 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Equipped with Eurotherm 3216 Digital Temperature Controller, High Capacity/High Efficiency Plate Type Heat Exchanger with Water Cooling Circuit for Rapid Cool-Down of Process Temperature, Portable Design - Unit mounted on four casters for easy positioning, Long-Life Viking Pump, Eurotherm 3216 controls, second Hand, DCM-5438
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
