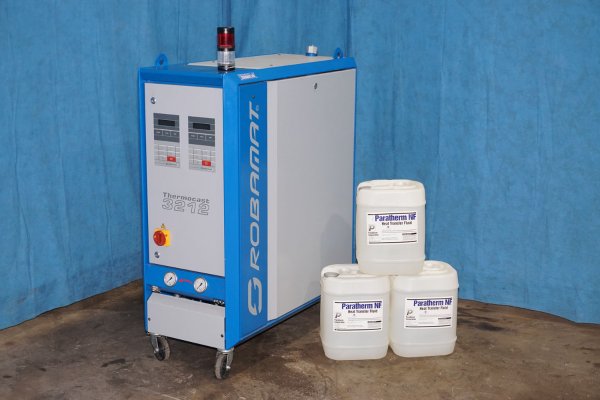

Used Robamat Model: 3212 40 kW (20 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerRobamat
Model3212
Size40 kW (20 kw per zone)
Inventory NumberDCM-5393

Robamat - 3212 40 kW (20 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Thermocast Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5393.

Features & Accessories

  • Machine was purchased new and never installed or run.
  • Dedicated Water Cooling Circuit for Each Zone
  • Motor Magnetically Coupled to Pump
  • Micro-Processor Controls with multilingual plain text display
  • Over-Temperature Protection - Thermal Oil Monitoring of the Maximum and Minimum Set Point Values
  • Cooling with Automatic Shut-Down

Item Specifications for DCM-5393

USMetric
Number of Zones:22
KW per Zone:20 kW20 kW
Maximum Temperature:482 Fahrenheit250 Celsius
Maximum Cooling Capacity:40 kW40 kW
Pump Motor:1.4 H.P.1.1 kW
Pump Rating:108 PSI, 15.8 Gallons per Minute7.5 BAR, 60 Liters per Minute
Power Requirements:480 Volt / 3 phase / 60 cycle - 63 Amps480 Volt / 3 phase / 60 cycle - 63 Amps
Approximate Weight:660 pounds280 kG
Overall Dimensions:41.4 x 19.7 x 53.2 inches1050 x 500 x 1350 mm

Video

Documents

Description

Used, Robamat Model 3212 40 kW (20 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Dedicated Water Cooling Circuit for Each Zone, Motor Magnetically Coupled to Pump, Micro-Processor Controls with multilingual plain text display, Over-Temperature Protection - Thermal Oil Monitoring of the Maximum and Minimum Set Point Values, Cooling with Automatic Shut-Down, Thermocast controls, second Hand, DCM-5393

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
