SOLD

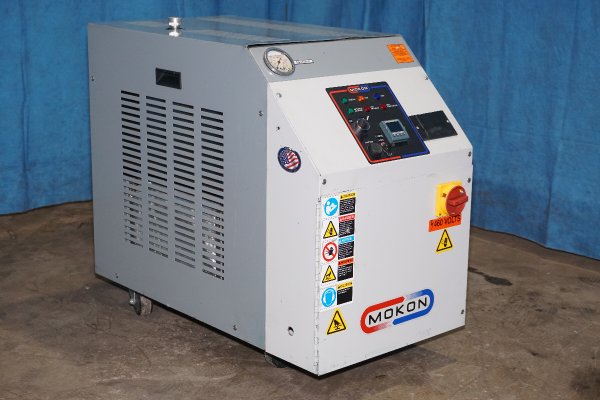

Used Mokon Model: H24106Z6 6 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerMokon
ModelH24106Z6
Size6 KW
Inventory NumberDCM-5384

Mokon - H24106Z6 6 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5384.

Features & Accessories

  • HTF 350 Series Mokon Dependability
  • Water Cooling Circuit
  • Built-in pump pressure relief valve
  • Unit on casters for easy movement

Item Specifications for DCM-5384

USMetric
Main Heater Power (Zone #1):6 KW6 KW
Pump Motor Size (Zone #1):.33 HP.24 KW
Flow Rate (Zone #1):5 gallons per minute18.9 liters per minute
Connection size/type (Zone #1):1 inch NPT1 inch NPT
Maximum Operating Temperature:350 degrees F176 degrees C
Overall Size (L x W x H):33 x 18 x 28 inches838.2 x 457.2 x 711.2 mm
Weight:250 pounds113 kg
Full Load Amps @ 460/3/60:8.3 FLA8.3 FLA

Video

Documents

Description

Used, Mokon Model H24106Z6 6 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 350 Series Mokon Dependability, Water Cooling Circuit, Built-in pump pressure relief valve, Unit on casters for easy movement, Eurotherm 3216 controls, second Hand, DCM-5384

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
