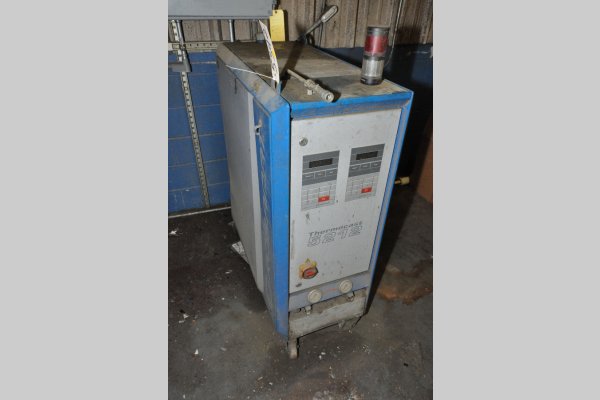

Used Robamat Model: 5212 40 kw (20 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Robamat |
| Model | 5212 |
| Size | 40 kw (20 kW per zone) |
| Inventory Number | DCM-5342 |
Robamat - 5212 40 kw (20 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Thermocast Controls
Questions? Call (847) 360-9170 and mention DCM-5342.
Features & Accessories
- Dedicated Water Cooling Circuit for Each Zone
- Motor Magnetically Coupled to Pump
- Micro-Processor Controls with multilingual plain text display
- Over-Temperature Protection - Thermal Oil Monitoring of the Maximum and Minimum Set Point Values
- Cooling with Automatic Shut-Down
Item Specifications for DCM-5342
| US | Metric | |
| Number of Zones: | 2 | 2 |
| KW per Zone: | 20 kW | 20 kW |
| Maximum Temperature: | 662 Fahrenheit | 350 Celsius |
| Maximum Cooling Capacity: | 60 kW | 60 kW |
| Pump Motor: | 3.75 H.P. | 2.8 kW |
| Pump Rating: | 159 PSI, 15.8 Gallons per Minute | 11 BAR, 60 Liters per Minute |
| Power Requirements: | 480 Volt / 3 phase / 60 cycle - 68 Amps | 480 Volt / 3 phase / 60 cycle - 68 Amps |
| Approximate Weight: | 660 pounds | 300 kG |
| Overall Dimensions: | 41.4 x 19.7 x 53.2 inches | 1050 x 500 x 1350 mm |
Documents
- Robamat CatalogPDF · 2.3 MB
- Robamat Catalog -1PDF · 1.4 MB
- Robamat ThermalcastPDF · 792 KB
Description
Used, Robamat Model 5212 40 kw (20 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Dedicated Water Cooling Circuit for Each Zone, Motor Magnetically Coupled to Pump, Micro-Processor Controls with multilingual plain text display, Over-Temperature Protection - Thermal Oil Monitoring of the Maximum and Minimum Set Point Values, Cooling with Automatic Shut-Down, Thermocast controls, second Hand, DCM-5342
