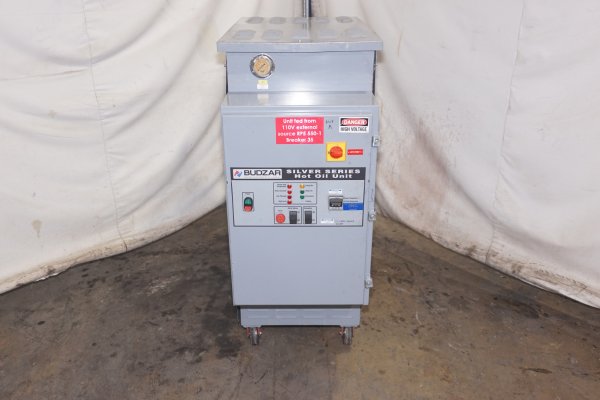

Used Budzar Industries Model: 1SS0T-2430-NC-030-FCB-0-00 24 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit
1 / 21| Status | Sold |
|---|---|
| Manufacturer | Budzar Industries |
| Model | 1SS0T-2430-NC-030-FCB-0-00 |
| Size | 24 KW |
| Inventory Number | DCM-5258 |
Budzar Industries - 1SS0T-2430-NC-030-FCB-0-00 24 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit, Controls
Questions? Call (847) 360-9170 and mention DCM-5258.
Features & Accessories
- Partlow 1160+ Digital Temperature Controller/HMI
- Equipped with Watlow DIN-A-MITE Solid Stare Power Controllers for Control of Heating Elements
- Compatible with Dowtherm A thermal fluid
- Set points for Process, High Alarm, Low Alarm
- Skid-Mounted Package Design for Fast Easy Installation - Full set of drawings, schematics and service manuals available
Item Specifications for DCM-5258
| US | Metric | |
| Main Heater Power (60 kw per heater): | 24 kW | 24 kW |
| Pump Motor Size: | 1.5 HP/ 3,500 RPM | 1.12 kW/ 3,500 RPM |
| Flow Rate: | 30 GPM | 113.5 liters per minute |
| Connection size/type: | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 550 F | 287 C |
| Full Load Amps @ 480/3/60: | 33.3 amp | 33.3 amp |
| Overall Size (L x W x H): | 45 x 22 x 54 Inches | 1143 x 559 x 1372 mm |
| Shipping Weight: | 250 pounds | 113.4 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Video
Description
Used, Budzar Industries Model 1SS0T-2430-NC-030-FCB-0-00 24 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Partlow 1160+ Digital Temperature Controller/HMI, Equipped with Watlow DIN-A-MITE Solid Stare Power Controllers for Control of Heating Elements, Compatible with Dowtherm A thermal fluid, Set points for Process, High Alarm, Low Alarm, Skid-Mounted Package Design for Fast Easy Installation - Full set of drawings, schematics and service manuals available, controls, second Hand, DCM-5258
