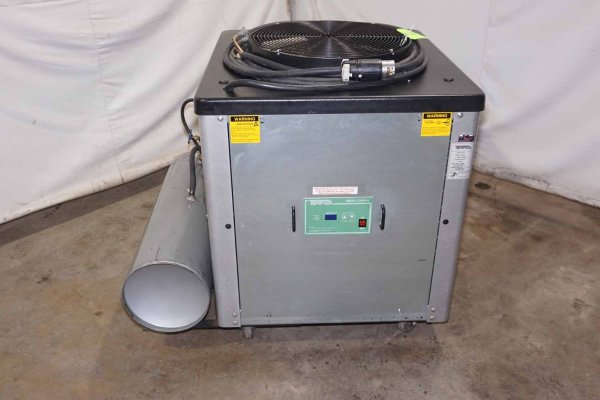

Used Temptek Model: CF-3A 12 kW Portable Refrigerated Water Chiller Temperature Control Unit
1 / 11| Status | Sold |
|---|---|
| Manufacturer | Temptek |
| Model | CF-3A |
| Size | 12 kW |
| Inventory Number | DCM-5042 |
Temptek - CF-3A 12 kW Portable Refrigerated Water Chiller Temperature Control Unit, CF-1 Chiller Controls
View Available Temperature Control Units
Questions? Call (847) 360-9170 and mention DCM-5042.
Features & Accessories
- Temptek uses microprocessor controls.
- Process temperatures range from 100 F to 400 F.
- Temptek uses 12 kW heaters.
- Temptek uses a centrifugal pump.
Item Specifications for DCM-5042
| US | Metric | |
| Capacity: | 12 KW | 12 kW |
| Process Pump: | 3/4 HP | .55 kW |
| Refrigerant: | 410A | 410A |
| Compressor: | 3 HP | 2.25 kW |
| Connection Size: | 1 inch | 25.4 mm |
| Air cooled condenser: | F-Type | F-Type |
| Full load amperage(FLA): | 20 AMPS | 20 AMPS |
| Tank Capacity: | 7.5 Gallons | 2668.72 liters |
| Dimensions(H x W x D): | (43 inches x 34 inches x 40 inches) | (1092.2 mm x 863.6 mm x 1016 mm) |
| Weight: | 600 lbs | 272.155 kg |
Documents
- Temptek CF2-4Tons ManualPDF · 441 KB
- Temptek Electrical Schematic Drawing for ControllerPDF · 176 KB
Description
Used, Temptek Model CF-3A 12 kW Portable Refrigerated Water Chiller Temperature Control Unit For_Sale, Features Include: Temptek uses microprocessor controls., Process temperatures range from 100 F to 400 F., Temptek uses 12 kW heaters., Temptek uses a centrifugal pump., CF-1 Chiller controls, second Hand, DCM-5042
