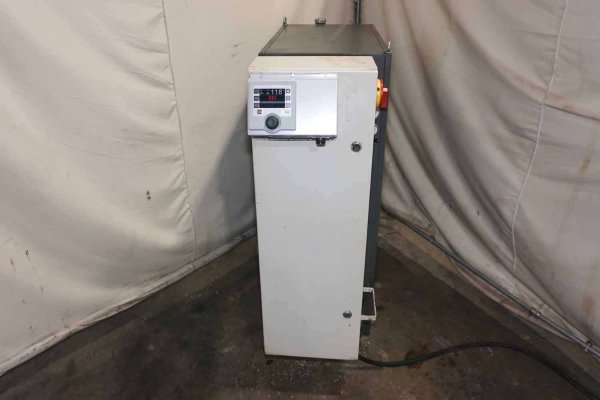

Used Regloplas Model: 301/24/FM65/1K/RT45 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 29| Status | Sold |
|---|---|
| Manufacturer | Regloplas |
| Model | 301/24/FM65/1K/RT45 |
| Size | 24 kW |
| Inventory Number | DCM-4984 |
Regloplas - 301/24/FM65/1K/RT45 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, RT100 Controls
Questions? Call (847) 360-9170 and mention DCM-4984.
Features & Accessories
- Regloplas Magnetic Drive Pumps
- Regloplas RT100 Controls
- Fail-safe circuit in case of heat contactor
Item Specifications for DCM-4984
| US | Metric | |
| Main Heater Power (Zone #1): | 20 kW | 20 kW |
| Pump Motor Size (Zone #1): | 3.8 HP | 2.8 KW |
| Flow Rate (Zone #1): | 23 GPM | 87 LPM |
| Connection Size/Type (Zone #1): | .75 inches NPT | 19.05 mm NPT |
| Maximum Operating Temperature: | 570 degrees F | 300 degrees C |
| Power Requirements: | 480 volt / 3 phase / 60 cycle 28.9 FLA | 480 volt / 3 phase / 60 cycle 28.9 FLA |
| Overall Size (L x W x H): | 53 x 17 x 45 inches | 1346 x 431.8 x 1143 mm |
| Weight: | 500 pounds | 226.796 |
Video
Documents
- Regloplas 300 & 301 Operations ManualPDF · 3.5 MB
- Manual RT100 ControllerPDF · 937 KB
Description
Used, Regloplas Model 301/24/FM65/1K/RT45 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Regloplas Magnetic Drive Pumps, Regloplas RT100 Controls, Fail-safe circuit in case of heat contactor, RT100 controls, second Hand, DCM-4984
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
