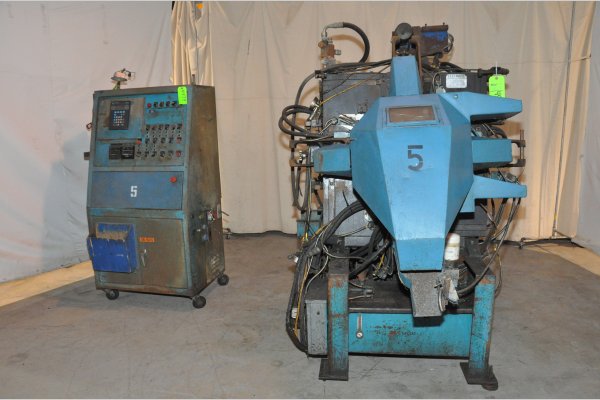

Used Techmire Model: 44H CSS-01 24 US Tons Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
1 / 37| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 44H CSS-01 |
| Size | 24 US Tons |
| Inventory Number | DCM-4979 |
Techmire - 44H CSS-01 24 US Tons Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Controls
View Available Hot Chamber Multi-Slide
Questions? Call (847) 360-9170 and mention DCM-4979.
Features & Accessories
- Techmire 44H machines with four installed slide movements - 4x4 Hot Chamber miniature Zinc Die Casting Machine
- Upgraded to Allen Bradley SLC 5/03 Series Controls
- Equipped with Optional Techmire Booster Cylinder (Hydraulic Piston Accumulator)
- Currently Configured with Four (4) Slides, Expandable to Six (6) Slides
- Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot
- Techmire 44 (aka: 4x4 or 44 or 4 x 4) Die Casting Machines are Manufactured in Montreal, Quebec Canada
Item Specifications for DCM-4979
| US | Metric | |
| Clamping Force: | 24 U.S. Tons | 21.79 Metric Tons |
| Die Motions - Current/Maximum: | 3 currently, maximum of 6 motions | 3 currently, maximum of 6 motions |
| Standard Die Size: | 4 x 4 inches | 101.6 x 101.6 mm |
| Die Stroke - Total Die Opening: | 2 inches, 4 inches | 50.8, 101.6 mm |
| Injection Plunger Diameter: | 1.250 inches | 31.75 mm |
| Injection Capacity (Zinc): | 7 ounces | 196 grams |
| Injection Speed: | 36 inches per second | 914 mm per second |
| Metal Pressure (maximum) | 1,500 psi | 103.4 Bar |
| Machine System Pressure: | 2,000 PSI | 138 Bar |
| Melting Pot Capacity: | 5.8 gallons or 345 pounds | 22 Liters or 156 kg |
| Furnace type: | Electric Resistance Elements | Electric Resistance Elements |
| Machine Weight: | 3,800 pounds | 1,725 kg |
Description
Used, Techmire Model 44H CSS-01 24 US Tons Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Techmire 44H machines with four installed slide movements - 4x4 Hot Chamber miniature Zinc Die Casting Machine, Upgraded to Allen Bradley SLC 5/03 Series Controls, Equipped with Optional Techmire Booster Cylinder (Hydraulic Piston Accumulator), Currently Configured with Four (4) Slides, Expandable to Six (6) Slides, Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot, Techmire 44 (aka: 4x4 or 44 or 4 x 4) Die Casting Machines are Manufactured in Montreal, Quebec Canada, Allen Bradley SLC 5/03 Solid State controls, second Hand, DCM-4979
