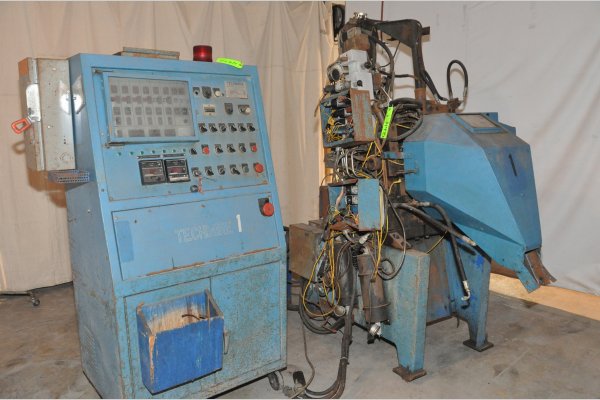

Used Techmire Model: 22Z 8 ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
1 / 31| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 22Z |
| Size | 8 ton |
| Inventory Number | DCM-4975 |
Techmire - 22Z 8 ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine, Techmire Controls
View Available Four Slide Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4975.
Features & Accessories
- Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot
- Techmire 22Z (aka 22 or 2x2 or 2 x 2 or 22 z) Die Casting Machines are Manufactured in Montreal, Quebec Canada
Item Specifications for DCM-4975
| US | Metric | |
| Standard Die Size: | 2.5 x 2.5 inches | 63.50 x 63.50 mm |
| Injection Capacity (zinc): | 6.58 ounces | 187 grams |
| Plunger Diameter: | 1 inch | 25.4 mm |
| Maximum Injection Pressure: | 4,000 psi | 275.8 bars |
| Maximum Hydraulic Line Pressure: | 1060 psi | 73 bars |
| Stroke of each Die Member: | 1.5 inches | 38 mm |
| Maximum Total Die Opening: | 3.0 inches | 76.2 mm |
| Clamping Force: | 7.9 Tons | 7.2 Metric Tons |
| Furnace power/bath capacity/melt rate in zinc: | 14.5 kw/280 pounds/132 pounds per hour | 14.5 kw/127 kg/60 kw per hour |
| Main Pump Motor: | 10 hp | 7.46 kw |
| Machine Weight: | 3700 pounds | 1700 KG |
| Floor Space Required (width x depth): | 4.6 x 6.2 feet | 1.87 x 1.4 meters |
Description
Used, Techmire Model 22Z 8 ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include:, Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot, Techmire 22Z (aka 22 or 2x2 or 2 x 2 or 22 z) Die Casting Machines are Manufactured in Montreal, Quebec Canada, Techmire controls, second Hand, DCM-4975
