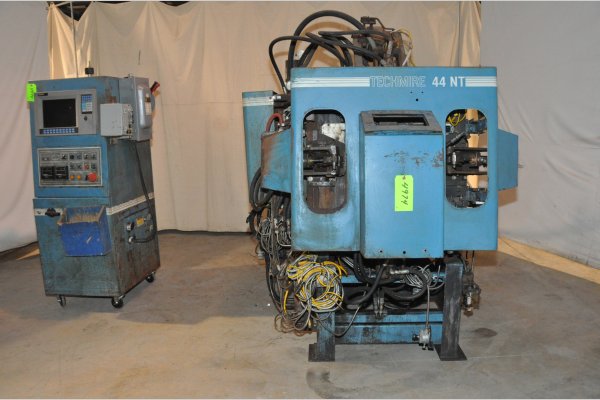

Used Techmire Model: 44Z NT 18 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
1 / 47| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 44Z NT |
| Size | 18 Metric Ton |
| Inventory Number | DCM-4974 |
Techmire - 44Z NT 18 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine, Techmire Industrial Hardened PC with XYCOM HMI (Human Machine Interface) Controls
View Available Hot Chamber Multi-Slide
Questions? Call (847) 360-9170 and mention DCM-4974.
Features & Accessories
- Techmire 44 ZNT Machine with four installed slide movements - 4x4 Hot Chamber Zinc Die Casting Machine
- Equipped with Optional Techmire Booster Cylinder (Hydraulic Piston Accumulator)
- Currently Configured with Four Slides, Expandable to Six Slide Operation
- Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot
- Techmire Electric Resistance Element Melting & Holding Furnace
- Techmire 44NT (aka 4x4 or 44 or 4 x 4 or 44 NT) Die Casting Machines are Manufactured in Montreal, Quebec Canada
Item Specifications for DCM-4974
| US | Metric | |
| Standard Die Size: | 4 x 4 inch | 101.6 x 101.6 mm |
| Standard Die Stroke of Each Die Slide: | 2 inches | 50.8 mm |
| Maximum Ejector Stroke: | 1.75 inches | 44.4 mm |
| Standard Total Die Opening: | 4 inches | 101.6 mm |
| Injection Plunger Diameter: | 1.625 inches | 41.27 mm |
| Injection Cylinder Diameter: | 3.25 inches | 82.55 mm |
| Injection Plunger Stroke: | 2.38 inches | 60 mm |
| Dry Shot Speed at 900 psi: | 55 inches/sec | 1.43 m/sec |
| Clamping Force: | 19.8 Tons | 18 Metric Tons |
| Metal Pressure (maximum theoretical): | 3,519 psi | 243 bars |
| Injection Capacity (maximum theoretical): | 17.5 ounces | 495 g |
| Melting Pot Capacity (zinc) | 398 pounds holding - 187 per hour melting | 181 kg holding - 85 kg per hour melting |
Description
Used, Techmire Model 44Z NT 18 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Techmire 44 ZNT Machine with four installed slide movements - 4x4 Hot Chamber Zinc Die Casting Machine, Equipped with Optional Techmire Booster Cylinder (Hydraulic Piston Accumulator), Currently Configured with Four Slides, Expandable to Six Slide Operation, Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot, Techmire Electric Resistance Element Melting & Holding Furnace, Techmire 44NT (aka 4x4 or 44 or 4 x 4 or 44 NT) Die Casting Machines are Manufactured in Montreal, Quebec Canada, Techmire Industrial Hardened PC with XYCOM HMI (Human Machine Interface) controls, second Hand, DCM-4974
