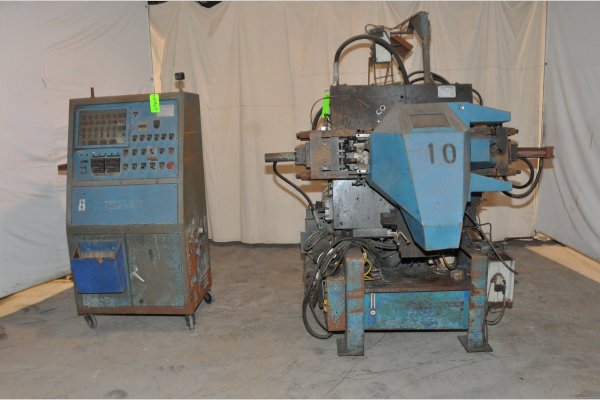

Used Techmire Model: 66Z 45 Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
1 / 33| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 66Z |
| Size | 45 Ton |
| Inventory Number | DCM-4969 |
Techmire - 66Z 45 Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine, Techmire Controls
View Available Hot Chamber Multi-Slide
Questions? Call (847) 360-9170 and mention DCM-4969.
Features & Accessories
- Techmire 66Z Controls
- Techmire Electric Zinc Melting Furnace (pot type) 400 pound - 180 KG Capacity
- Two Slide Motions - Expandable up to six motions
- 15 Horsepower - 11.19 KW Main Pump Motor
- Central Pressurized Automatic Lubrication System
- Techmire 66 (aka: 6x6 or 66 or 6 x 6) Die Casting Machines are Manufactured in Montreal, Quebec Canada
Item Specifications for DCM-4969
| US | Metric | |
| Standard Die Size | 6.299 x 6.299 inches | 160 x 160 mm |
| Clamping Force | 45 tons | 40.83 tons |
| Stroke of Each Die Member | 3.15 | 80 mm |
| Total Die Opening | 6.3 inches | 160 mm |
| Maximum Ejector Stroke | 1.75 inches | 44.4 mm |
| Injection Plunger Diameter | 1.57 inches | 40.0 mm |
| Injection Cylinder Diameter | 3.25 inches | 82.55 mm |
| Injection Plunger Stroke | 2.38 inches | 40 mm |
| Dry Shot Speed at 900 psi | 135 ips | 3,429 mm/sec |
| Maximum Shot Weight (zinc) | 14 oz | 500 grams |
| Metal Pressure (maximum theoretical) | 4,685 psi | 323 bars |
| Dry Cycle Speed: | 45 cpm | 45 cpm |
Description
Used, Techmire Model 66Z 45 Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Techmire 66Z Controls, Techmire Electric Zinc Melting Furnace (pot type) 400 pound - 180 KG Capacity, Two Slide Motions - Expandable up to six motions, 15 Horsepower - 11.19 KW Main Pump Motor, Central Pressurized Automatic Lubrication System, Techmire 66 (aka: 6x6 or 66 or 6 x 6) Die Casting Machines are Manufactured in Montreal, Quebec Canada, Techmire controls, second Hand, DCM-4969
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
