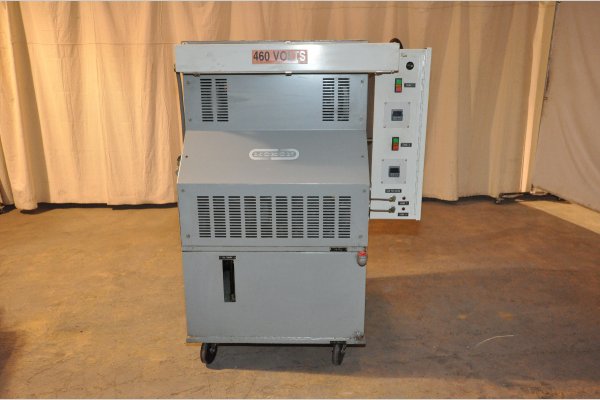

Used Mokon Model: MK4G09-F7 18 kW (9 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerMokon
ModelMK4G09-F7
Size18 kW (9 kW per zone)
Inventory NumberDCM-4874

Mokon - MK4G09-F7 18 kW (9 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, COMP 1000 Controls

View Available Temperature Control Units

Questions? Call (847) 360-9170 and mention DCM-4874.

Features & Accessories

  • HTF 500 Series Mokon Dependability
  • Water Cooling Circuit
  • Built-in pump pressure relief valve
  • Unit on casters for easy movement

Item Specifications for DCM-4874

USMetric
Main Heater Power (Zone #1):9 kW9 kW
Pump Motor Size (Zone #1):1 HP @ 1145 RPM.75 KW @ 1145 RPM
Flow Rate (Zone #1):10 gallons per minute38 liters per minute
Connection size/type (Zone #1):1 inch NPT1 inch NPT
Main Heater Power (Zone #2):9 kW9 kW
Pump Motor Size (Zone #2):1 HP.75 KW
Flow Rate (Zone #2):10 gallons per minute38 liters per minute
Connection size/type (Zone #2):1 inch NPT1 inch NPT
Maximum Operating Temperature:450 degrees F232 degrees C
Overall Size (L x W x H):45 x 31 x 51 inches1143 x 787 x 1295 mm
Approx. Weight:777 pounds352 kg
Full Load Amps @ 460/3/60:22.6 amp22.6 amp

Video

Description

Used, Mokon Model MK4G09-F7 18 kW (9 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 500 Series Mokon Dependability, Water Cooling Circuit, Built-in pump pressure relief valve, Unit on casters for easy movement, COMP 1000 controls, second Hand, DCM-4874

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
