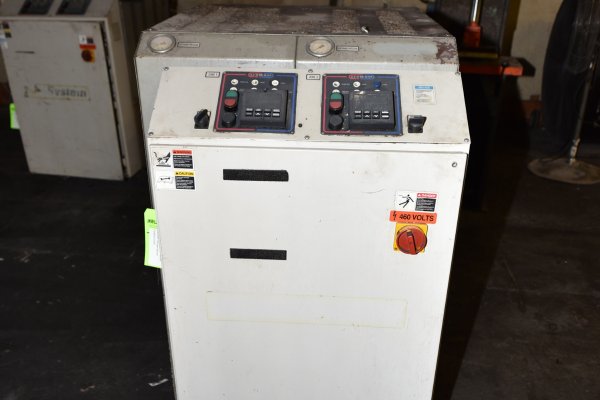

Used Mokon Model: H44212-28 24 kW (12 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H44212-28 |
| Size | 24 kW (12 kW per zone) |
| Inventory Number | DCM-4839 |
Mokon - H44212-28 24 kW (12 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm Controls
Questions? Call (847) 360-9170 and mention DCM-4839.
Features & Accessories
- HTF 500 Series Mokon Dependability
- Water Cooling Circuit
- Built-in pump pressure relief valve
- Eurotherm Controls
- Unit on casters for easy movement
Item Specifications for DCM-4839
| US | Metric | |
| Main Heater Power (Zone #1): | 12 KW | 12 KW |
| Pump Motor Size (Zone #1): | 1 HP | .75 KW |
| Flow Rate (Zone #1): | 20 gallons per minute | 75.70 liters per minute |
| Connection size/type (Zone #1): | 1 inch NPT | 1 inch NPT |
| Main Heater Power (Zone #2): | 12 KW | 12 KW |
| Pump Motor Size (Zone #2): | 1 HP | .75 KW |
| Flow Rate (Zone #2): | 20 gallons per minute | 75.70 liters per minute |
| Connection size/type (Zone #2): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Overall Size (L x W x H): | 41 x 30 x 62 inches | 1041 x 762 x 1575 mm |
| Full Load Amps @ 460/3/60: | 34 amp | 34 amp |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Mokon Model: h54124pn 24 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4832
- Sold – Mokon 24 KW Single Zone Hot Oil Temperature Control Unit DCM-4833
- Sold – Mokon 24 KW Single Zone Hot Oil Temperature Control Unit DCM-4834
- Sold – Mokon 24 KW Single Zone Hot Oil Temperature Control Unit DCM-4835
- Sold – Mokon 24 KW Single Zone Hot Oil Temperature Control Unit DCM-4836
- Sold – Mokon 48 KW Dual Zone Hot Oil Temperature Control Unit DCM-4837
- Sold – Mokon 48 KW Dual Zone Hot Oil Temperature Control Unit DCM-4838
Documents
Description
Used, Mokon Model H44212-28 24 kW (12 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 500 Series Mokon Dependability, Water Cooling Circuit, Built-in pump pressure relief valve, Eurotherm Controls, Unit on casters for easy movement, Eurotherm controls, second Hand, DCM-4839
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
