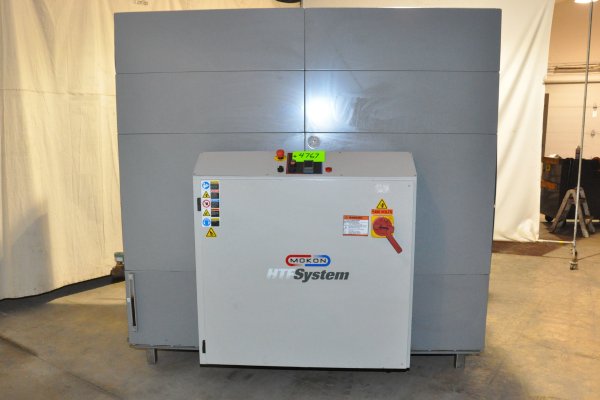

Used Mokon Model: HF4896CF 96 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 22| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | HF4896CF |
| Size | 96 KW |
| Inventory Number | DCM-4767 |
Mokon - HF4896CF 96 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm Controls
Questions? Call (847) 360-9170 and mention DCM-4767.
Features & Accessories
- Water Cooling Circuit
- Mokon Dependability
- Unit on casters for easy movement
- Eurothrm 3208 Digital PID Contoller
- This is only a preliminary test
Item Specifications for DCM-4767
| US | Metric | |
| Main Heater Power (Zone #1): | 96 KW | 96 KW |
| Pump Motor Size (Zone #1): | 10 HP | 7.45 kW |
| Flow Rate (Zone #1): | 198 gallons per minute | 749 liters per minute |
| Main Pump: | MP-35837 | MP-35837 |
| Connection size/type (Zone #1): | 3 inch NPT | 76.2 mm NPT |
| Maximum Operating Temperature: | 600 degrees F | 343 degrees C |
| Overall Size (L x W x H): | 96 x 70 x 90 inches | 2438 x 1778 x 2286 mm |
| Full Load Amps @ 460/3/60: | 136 amp | 136 amp |
| Approximate Shipping Weight: | 1,150 pounds | 523 Kilograms |
| This is only a test | of the spanish | translation system |
Description
Used, Mokon Model HF4896CF 96 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Water Cooling Circuit, Mokon Dependability, Unit on casters for easy movement, Eurothrm 3208 Digital PID Contoller, This is only a preliminary test, Eurotherm controls, second Hand, DCM-4767
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
