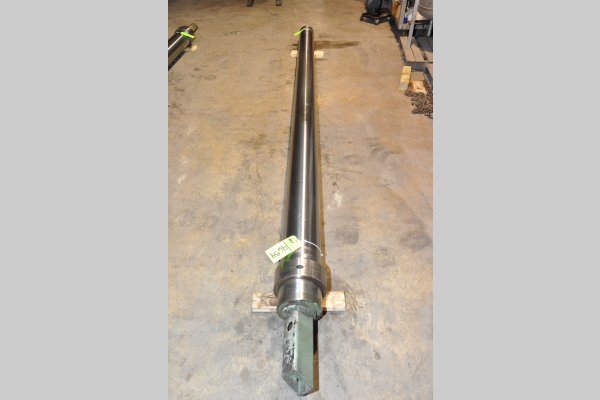

Used Prince Model: 836 Tie Bar 7.5 inch (Diameter) Die Cast Machine Tie Bar
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 836 Tie Bar |
| Size | 7.5 inch (Diameter) |
| Inventory Number | DCM-4654 |
Prince - 836 Tie Bar 7.5 inch (Diameter) Die Cast Machine Tie Bar, n/a Controls
Questions? Call (847) 360-9170 and mention DCM-4654.
Features & Accessories
- See PDF Drawing further down this page
- Fits in most Prince Model 836 CCA, 836 CCM, 836 HC die cast machines - Used in 850 and 900 ton Price Die Cast Machine Applications
- Pre-Drilled for Prince Electronic Tie bar Strain Gages - Used Electronic Strain-Gauge Included
- Includes One (1) Split-Ring
- Genuine Factory Prince Tie Bar
- Can ship same day from our Waukegan, Illinois Warehouse
- Expedited Same Day Delivery Available
Item Specifications for DCM-4654
| US | Metric | |
| Tie Bar Diameter: | 7.5 inches | 190.5 mm |
| Overall Tie Bar Length: | 162 inches | 4,114.8 mm |
| Tie Bar Fillet Width: | 3.50 inches | 88.9 mm |
| Distance end of bar to start of fillet: | 4-1/16 inches | 103.18 mm |
| Drilled for Stain Gauges: | Yes (used electronic Strain Gauge included) | Yes (used electronic Strain Gauge included) |
| Approximate Weight: | 2,029 pounds | 922.2 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Documents
- Prince 800 Ton Tie Bar DrawingPDF · 239 KB
Description
Used, Prince Model 836 Tie Bar 7.5 inch (Diameter) Die Cast Machine Tie Bar For_Sale, Features Include: Fits in most Prince Model 836 CCA, 836 CCM, 836 HC die cast machines - Used in 850 and 900 ton Price Die Cast Machine Applications, Pre-Drilled for Prince Electronic Tie bar Strain Gages - Used Electronic Strain-Gauge Included, Includes One (1) Split-Ring, Genuine Factory Prince Tie Bar, Can ship same day from our Waukegan, Illinois Warehouse, Expedited Same Day Delivery Available, n/a controls, second Hand, DCM-4654
