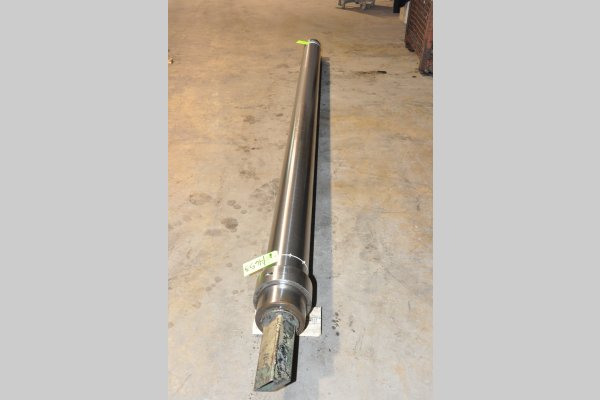

Used Prince Model: 836 Tie Bar 7.5 inch (Diameter) Die Cast Machine Tie Bar
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 836 Tie Bar |
| Size | 7.5 inch (Diameter) |
| Inventory Number | DCM-4653 |
Prince - 836 Tie Bar 7.5 inch (Diameter) Die Cast Machine Tie Bar, n/a Controls
Questions? Call (847) 360-9170 and mention DCM-4653.
Features & Accessories
- See PDF Drawing further down this page
- Fits in most Prince Model 836 CCA, 836 CCM, 836 HC die cast machines - Used in 850 and 900 ton Price Die Cast Machine Applications
- Prepared for Automatic Tie Bar Puller including: Front Nut Keyway and Rear Bolt Pattern for Tie Bar Puller Bracket
- Pre-Drilled for Prince Electronic Tie bar Strain Gages - Used Electronic Strain-Gauge Included
- Genuine Factory Prince Tie Bar
- Includes One (1) Split-Ring
- Can ship same day from our Waukegan, Illinois Warehouse - Expedited Same Day Delivery Available
Item Specifications for DCM-4653
| US | Metric | |
| Tie Bar Diameter: | 7.5 inches | 190.5 mm |
| Tie Bar Length: | 162 inches | 4,114.8 mm |
| Tie Bar Fillet Width: | 3.50 inches | 88.9 mm |
| Distance end of bar to fillet: | 4-1/16 inches | 103.18 mm |
| Drilled for Rear Tie Bar Puller Bracket: | Yes | Yes |
| Front Keyway for Tie bar Puller assembly: | Yes | Yes |
| Drilled for Stain Gauges: | Yes (used electronic Strain Gauge included) | Yes (used electronic Strain Gauge included) |
| Approximate Weight: | 2,029 pounds | 922.2 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Prince 836 tie bar DCM-4654
Description
Used, Prince Model 836 Tie Bar 7.5 inch (Diameter) Die Cast Machine Tie Bar For_Sale, Features Include: Fits in most Prince Model 836 CCA, 836 CCM, 836 HC die cast machines - Used in 850 and 900 ton Price Die Cast Machine Applications, Prepared for Automatic Tie Bar Puller including: Front Nut Keyway and Rear Bolt Pattern for Tie Bar Puller Bracket, Pre-Drilled for Prince Electronic Tie bar Strain Gages - Used Electronic Strain-Gauge Included, Genuine Factory Prince Tie Bar, Includes One (1) Split-Ring, Can ship same day from our Waukegan, Illinois Warehouse - Expedited Same Day Delivery Available, n/a controls, second Hand, DCM-4653
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
