SOLD

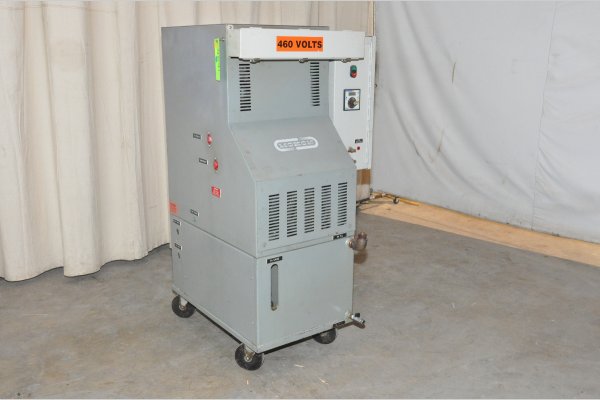

Used Mokon Model: HC4F12-NU 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerMokon
ModelHC4F12-NU
Size12 KW
Inventory NumberDCM-4641

Mokon - HC4F12-NU 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Compu-Mate 1000 Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-4641.

Features & Accessories

  • Water Cooling Circuit
  • Mokon Dependability
  • Unit on casters for easy movement
  • Compu-Mate 1000 Controllers

Item Specifications for DCM-4641

USMetric
Main Heater Power (Zone #1):12 KW12 KW
Pump Motor Size (Zone #1):2 HP @ 1165 RPM1.49 KW @ 1165 RPM
Flow Rate (Zone #1):20 gallons per minute76 liters per minute
Connection size/type (Zone #1):.75 inch NPT19.05 mm NPT
Maximum Operating Temperature:500 degrees F260 degrees C
Overall Size (L x W x H):30 x 36 x 36 inches762 x 914 x 914 mm
Full Load Amps @ 460/3/60:18.5 amp18.5 amp

Video

Description

Used, Mokon Model HC4F12-NU 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Water Cooling Circuit, Mokon Dependability, Unit on casters for easy movement, Compu-Mate 1000 Controllers, Compu-Mate 1000 controls, second Hand, DCM-4641

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
