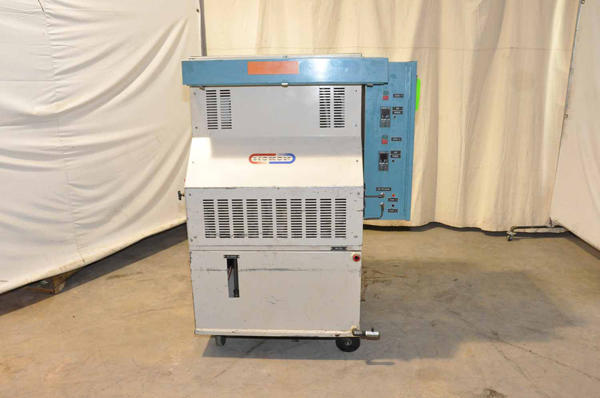

Used Mokon Model: MK4S09GK 18 kW (9 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerMokon
ModelMK4S09GK
Size18 kW (9 kW per zone)
Inventory NumberDCM-4631

Mokon - MK4S09GK 18 kW (9 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, CompuMate 3800 Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-4631.

Features & Accessories

  • Water Cooling Circuit
  • Built-in pump pressure relief valve
  • Unit on casters for easy movement
  • Mokon Dependability
  • CompuMate 3800 Controller

Item Specifications for DCM-4631

USMetric
Main Heater Power (Zone #1):9 KW9 KW
Pump Motor Size (Zone #1):1 HP.75 KW
Flow Rate (Zone #1):20 gallons per minute75.70 liters per minute
Connection size/type (Zone #1):1 inch NPT1 inch NPT
Maximum Operating Temperature:450 degrees F232 degrees C
Main Heater Power (Zone #2):9 KW9 KW
Pump Motor Size (Zone #2):1 HP.75 KW
Flow Rate (Zone #2):20 gallons per minute75.70 liters per minute
Connection size/type (Zone #2):1 inch NPT1 inch NPT
Maximum Operating Temperature:450 degrees F232 degrees C
Overall Size (L x W x H):33 x 48 x 58 inches838 x 1219 x 1473 mm
Full Load Amps @ 460/3/60:29.8 amp29.8 amp

Video

Description

Used, Mokon Model MK4S09GK 18 kW (9 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Water Cooling Circuit, Built-in pump pressure relief valve, Unit on casters for easy movement, Mokon Dependability, CompuMate 3800 Controller, CompuMate 3800 controls, second Hand, DCM-4631
