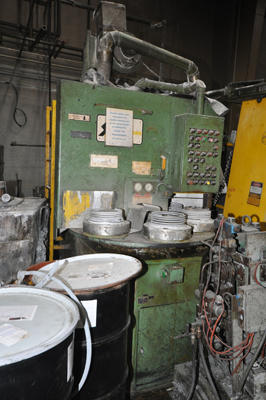

Used Surftran Model: C-250-6 25-210N-6H 250 Ton Thermal Energy Method (TEM) Thermal Parts Deburring Machine
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Surftran |
| Model | C-250-6 25-210N-6H |
| Size | 250 Ton |
| Inventory Number | DCM-4073 |
Surftran - C-250-6 25-210N-6H 250 Ton Thermal Energy Method (TEM) Thermal Parts Deburring Machine, Allen Bradley Relay Logic Controls Controls
View Available Surftran Thermal Deburring
Questions? Call (847) 360-9170 and mention DCM-4073.
Features & Accessories
- Surftran Model C-250 TEM (Thermal Energy Method) six station, automated parts deburring machine for mass production removal of internal burrs, external burrs, flash removal in casting, forgings and molded parts. Also used for edge preparation.
- High Production six (6) Station Indexing Machine with 250 ton capacity
- Includes Natural Gas Compressor allowing for economical operation on Natural Gas
- Large diameter, high capacity parts chambers allows for larger parts or multiple smaller parts
- Surtran is the proven leader in the Thermal Deburring Process using TEM technology
- Common applications: Internal burr removal on castings, molded parts, screw machine parts, CNC Machined parts, hydraulic manifolds - internal and external flash removal on castings and molded parts
- Other applications: Gear chamfering, internal hydraulic manifold ports, blind holes and passages, cross-drilled parts, carburetor parts, fuel system components, delicate parts
Item Specifications for DCM-4073
| US | Metric | |
| Number of Blast Chambers: | 6 | 6 |
| Chamber Diameter: | 7 inches | 177.8 mm |
| Chamber Height: | 6 inches | 152.4 |
| Chamber Clamping Force: | 250 Tons | 2491 kN |
| Normal Rate Capacity: | 115 Cycles per hour | 115 Cycles per hour |
| Maximum Charge Pressure: | 160 psi | 160 psi |
Description
Used, Surftran Model C-250-6 25-210N-6H 250 Ton Thermal Energy Method (TEM) Thermal Parts Deburring Machine For_Sale, Features Include: High Production six (6) Station Indexing Machine with 250 ton capacity, Includes Natural Gas Compressor allowing for economical operation on Natural Gas, Large diameter, high capacity parts chambers allows for larger parts or multiple smaller parts, Surtran is the proven leader in the Thermal Deburring Process using TEM technology, Common applications: Internal burr removal on castings, molded parts, screw machine parts, CNC Machined parts, hydraulic manifolds - internal and external flash removal on castings and molded parts, Other applications: Gear chamfering, internal hydraulic manifold ports, blind holes and passages, cross-drilled parts, carburetor parts, fuel system components, delicate parts, Allen Bradley Relay Logic Controls controls, second Hand, DCM-4073
