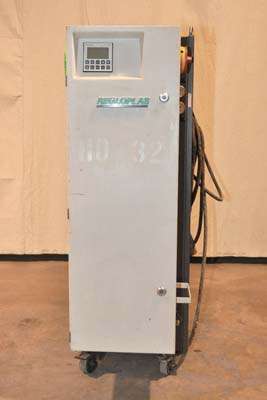

Used Regloplas Model: 301/36/FM65/1K/RT50 36 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Regloplas |
| Model | 301/36/FM65/1K/RT50 |
| Size | 36 kW |
| Inventory Number | DCM-3747 |
Regloplas - 301/36/FM65/1K/RT50 36 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, RT50 Controls
Questions? Call (847) 360-9170 and mention DCM-3747.
Features & Accessories
- Regloplas Magnetic Drive Pumps
- Regloplas RT-50 Controls
- Fail-safe circuit in case of heat contactor
Item Specifications for DCM-3747
| US | Metric | |
| Main Heater Power (Zone #1): | 36 kW | 36 kW |
| Pump Motor Size (Zone #1): | 3.8 HP | 2.8 KW |
| Flow Rate (Zone #1): | 19.8 gallons per minute | 75 liters per minute |
| Connection Size/Type (Zone #1): | 3/4 inch NPT | 1.81 mm NPT |
| Maximum Operating Temperature: | 572 degrees F | 300 degrees C |
| Power Requirements: | 480 volt / 3 phase / 60 cycle 53.3 FLA | 480 volt / 3 phase / 60 cycle 53.3 FLA |
| Overall Size (L x W x H): | 48 x 17.5 x 54 inches | 1,220 x 445 x 1,372 mm |
| Weight: | 505 lbs | 229.5 kg |
Video
Documents
- Regloplas 300 & 301 Operations ManualPDF · 3.5 MB
- Regloplas RT50 Controller ManualPDF · 954 KB
Description
Used, Regloplas Model 301/36/FM65/1K/RT50 36 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Regloplas Magnetic Drive Pumps, Regloplas RT-50 Controls, Fail-safe circuit in case of heat contactor, RT50 controls, second Hand, DCM-3747
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
