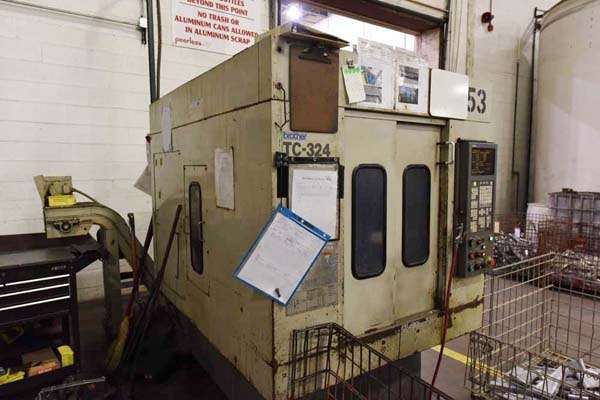

Used Brother Model: TC-324 500 x 300 mm CNC High Speed Drill-Tap-Milling Machine - Vertical Spindle - Two Pallet with ATC
1 / 14| Status | Sold |
|---|---|
| Manufacturer | Brother |
| Model | TC-324 |
| Size | 500 x 300 mm |
| Inventory Number | DCM-3691 |
Brother - TC-324 500 x 300 mm CNC High Speed Drill-Tap-Milling Machine - Vertical Spindle - Two Pallet with ATC, Brother CNC-830 Controls
Questions? Call (847) 360-9170 and mention DCM-3691.
Features & Accessories
- New in March 1999, 20,307 run hours indicated
- Brother 830 CNC Control
- Integrated High Speed Pallet Changer
- 10 Station ATC
- G-Code Control Programing
Item Specifications for DCM-3691
| US | Metric | |
| Table Pallet Size: | 19.69 x 11.81 inches | 500 x 300 mm |
| X Axis Travel: | 16.5 | 419 mm |
| Y Axis Travel: | 12.6 | 320 |
| Z Axis Travel: | 10.6 | 270 |
| Maximum Spindle Speed: | 10,000 RPM | 10,000 RPM |
| Number to Tool Positions: | 10 | 10 |
| Spindle Nose to Table (minimum/maximum) | 7.48 - 17.71 | 190 - 450 mm |
| Number of Pallet Positions: | 2 | 2 |
| Pallet Change Time: | 2.8 second | 2.8 Second |
| Pallet Load Capacity: | 388 pounds | 175 Kg |
| Approximate Machine Height: | 94 inches | 2,388 mm |
| Approximate Weight: | 6,176 pounds | 2,800 Kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Brother TC-32A DCM-3692
Video
Description
Used, Brother Model TC-324 500 x 300 mm CNC High Speed Drill-Tap-Milling Machine - Vertical Spindle - Two Pallet with ATC For_Sale, Features Include: Brother 830 CNC Control, Integrated High Speed Pallet Changer, 10 Station ATC, G-Code Control Programing, Brother CNC-830 controls, second Hand, DCM-3691
