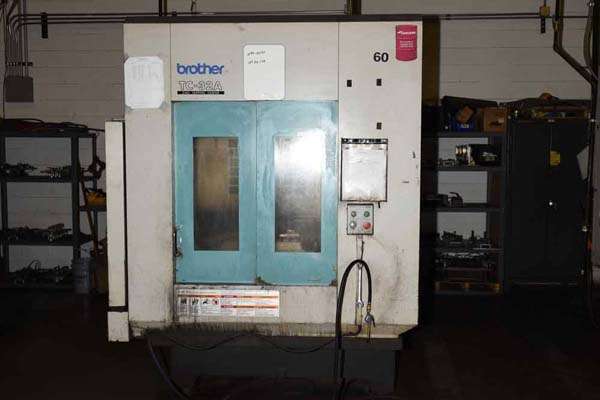

Used Brother Model: TC-32A 550 x 350 mm CNC High Speed Drill-Tap-Milling Machine - Vertical Spindle - Two Pallet with ATC
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Brother |
| Model | TC-32A |
| Size | 550 x 350 mm |
| Inventory Number | DCM-3692 |
Brother - TC-32A 550 x 350 mm CNC High Speed Drill-Tap-Milling Machine - Vertical Spindle - Two Pallet with ATC, Brother CNC-A00 CNC Controls Controls
Questions? Call (847) 360-9170 and mention DCM-3692.
Features & Accessories
- New in October, 2000; 37,000 run hours indicated
- Brother CNC-A00 CNC Controls
- Integrated High Speed Pallet Changer
- 18 Station ATC
- G-Code Control Programing
Item Specifications for DCM-3692
| US | Metric | |
| Table Pallet Size: | 21.6 x 13.7 inches | 550 x 350 mm |
| X Axis Travel: | 17.7 | 450 mm |
| Y Axis Travel: | 12.5 | 320 mm |
| Z Axis Travel: | 16.1 | 410 mm |
| Maximum Spindle Speed: | 12,000 RPM | 12,000 RPM |
| Number to Tool Positions: | 18 | 18 |
| Spindle Nose to Table (minimum/maximum) | 7.9 - 24 inches | 200 - 610 mm |
| Number of Pallet Positions: | 2 | 2 |
| Pallet Change Time: | 2.8 second | 2.8 Second |
| Pallet Load Capacity: | 176 pounds | 80 Kg |
| Approximate Machine Height: | 93 inches | 2,360 mm |
| Approximate Weight: | 7,700 pounds | 3,500 Kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Video
Description
Used, Brother Model TC-32A 550 x 350 mm CNC High Speed Drill-Tap-Milling Machine - Vertical Spindle - Two Pallet with ATC For_Sale, Features Include: Brother CNC-A00 CNC Controls, Integrated High Speed Pallet Changer, 18 Station ATC, G-Code Control Programing, Brother CNC-A00 CNC Controls controls, second Hand, DCM-3692
