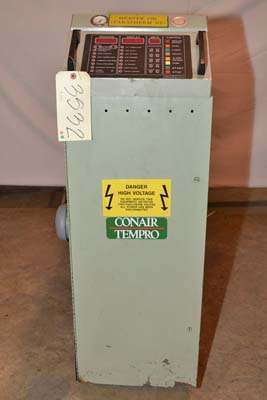

Used Conair Model: Tempro TC1-500 18 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 14| Status | Sold |
|---|---|
| Manufacturer | Conair |
| Model | Tempro TC1-500 |
| Size | 18 kW |
| Inventory Number | DCM-3532 |
Conair - Tempro TC1-500 18 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, MT-3 Controls
View Available Temperature Control Units
Questions? Call (847) 360-9170 and mention DCM-3532.
Features & Accessories
- Water Cooling Circuit
- Thermolator Micro Trac 3 Controllers
Item Specifications for DCM-3532
| US | Metric | |
| Main Heater Power (Zone #1): | 18 KW | 18 KW |
| Pump Motor Size (Zone #1): | 1 HP | .75 KW |
| Flow Rate (Zone #1): | 14 gallons per minute | 53 liters per minute |
| Connection size/type (Zone #1): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Overall Size (L x W x H): | 34 x 13 x 31 inches | 863 x 330 x 787 mm |
| Full Load Amps @ 230/3/60: | 47.3 amp | 47.3 amps |
| Overall Weight: | 275 lbs | 124.7 kg |
Video
Documents
- Conair Temperature Control ManualPDF · 1.9 MB
- Wiring Schematic - 09003068PDF · 142 KB
Description
Used, Conair Model Tempro TC1-500 18 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Water Cooling Circuit, Thermolator Micro Trac 3 Controllers, MT-3 controls, second Hand, DCM-3532
