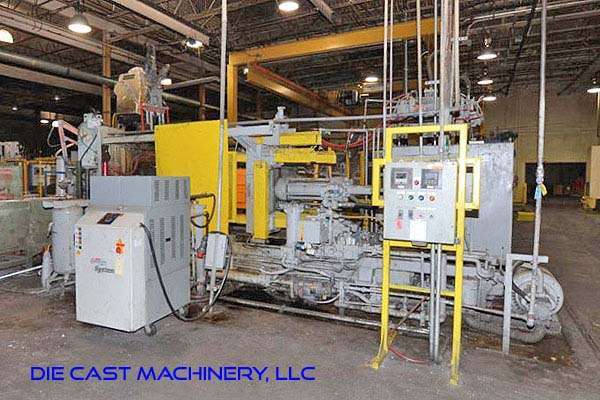

Used HPM Model: II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 12| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-600-A |
| Size | 600 Ton |
| Inventory Number | DCM-3155 |
HPM - II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 with DTAM Plus Display Controls
View Available Cold Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-3155.
Features & Accessories
- Hydraulic Motorized Die Height Adjustment
- Air Safety Ratchet
- Hydraulic Bumper Plate Ejection System
- One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen
- Trabon Automatic Linkage Lubrication System
- Power Operator Side Safety Door and Manual Helper Side Safety Door
Item Specifications for DCM-3155
| US | Metric | |
| Locking Force: | 600 tons | 545 tons |
| Tie Bar Diameter: | 6 inches | 736 mm x 736 mm |
| Clearance Between Tie Bars (H x V): | 29 x 29 inches | 736 mm x 736 mm |
| Die Thickness (minimum - maximum): | 14 - 36 inches | 355 mm - 914 mm |
| Die Stroke (minimum - maximum): | 12 - 18 inches | 304 mm - 457 mm |
| Moving Platen Size: | 48 x 48 inches | 1219 mm x 1219 mm |
| Shot Positions: | Center, -6 & - 9 inches below center | 0, -152, -228 mm below center |
| Shot Cylinder Stroke: | 19 - 23 inches | 482 mm - 584 mm |
| Shot Intensification: | Multiplier Cylinder | Multiplier Cylinder |
| Power: | 480/3/60 | 480/3/60 |
| Machine Size: | 7.1 x 26.2 feet | 2.2 x 8 m |
| Machine Weight: | 57,000 pounds | 21,274 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Gasmac 1800 Pound Low Energy High Efficiency Natural Gas Heated Aluminum Holding Furnace DCM-3156
- Sold – Snair Linear Automatic Ladle For Aluminum and Brass Die Casting and Foundry Operations DCM-3157
- Sold – Rimrock 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3158
- Sold – ABB 1.960 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3159
- Sold – Kard 30 ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3258
Description
Used, HPM Model II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment, Air Safety Ratchet, Hydraulic Bumper Plate Ejection System, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, Trabon Automatic Linkage Lubrication System, Power Operator Side Safety Door and Manual Helper Side Safety Door, Allen Bradley SLC 5/03 with DTAM Plus Display controls, second Hand, DCM-3155
