SOLD

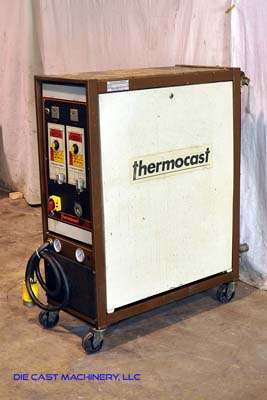

Used Robamat Model: 40 KW (20 kw per zone)

StatusSold
ManufacturerRobamat
Size40 KW (20 kw per zone)
Inventory NumberDCM-2959

Robamat - 40 KW (20 kw per zone) , Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-2959.

Features & Accessories

  • Model: 3112-20-60-PNZ-17-71-75-76-86-90
  • Thermcast Robatherm Micro Processor Controls
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature and Return Temperature

Item Specifications for DCM-2959

USMetric
Full Load Amps @ 460/3/60:63.063.0
Main Heater Power (Zone #1):20 KW20 KW
Main Heater Power (Zone #2):20 KW20 KW
Maximum Operating Temperature:480 degrees F250 degrees C
Pump Motor Size (Zone #1):1.5 HP1.2 KW
Pump Motor Size (Zone #2):1.5 HP1.2 KW
Cooling Capacity (Zone #1):60 KW60 KW
Cooling Capacity (Zone #2)60 KW60 KW
Connection size/type:3/4 inch NPT3/4 inch NPT
Size (W x L x H):18 x 45 x 50 inches457 x 1143 x 1270 mm
Approximate Weight:611 pounds277 Kg

Description

Used, Robamat Model 40 KW (20 kw per zone) For_Sale, Features Include: Thermcast Robatherm Micro Processor Controls, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature and Return Temperature, controls, second Hand, DCM-2959

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
