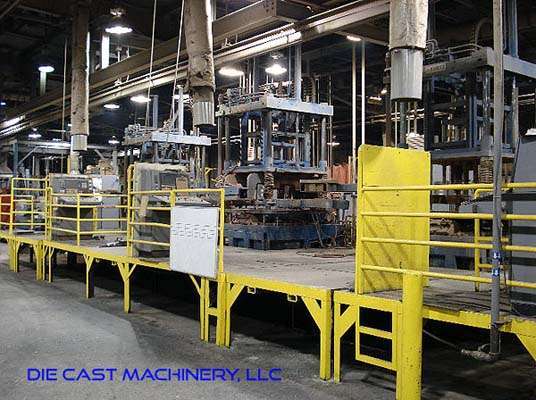

Used Kurtz Model: AL 13-13 TC 1313
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Kurtz |
| Model | AL 13-13 TC |
| Size | 1313 |
| Inventory Number | DCM-2912 |
Kurtz - AL 13-13 TC 1313 , PLC Controls
Questions? Call (847) 360-9170 and mention DCM-2912.
Features & Accessories
- New In 1999
- Two (2) Mold (Mould) Closing Cylinders
- Tiltable Clamp Unit For Fast Access To Furnace
- Die and Hydraulic Cooling
- Crucible Resistance Furnace
- PLC Control
Item Specifications for DCM-2912
| US | Metric | |
| Clearance Between Tie Bars | 53 x 53 inches | 1350 x 1350 mm |
| Maximum Daylight | 59 inches | 1499 mm |
| Closing Force | 27,000 pounds | 12,247 kg |
| Injection Pressure | 14.5 psi | 1 bar |
| Hydraulic Motor | 20 hp | 14.9 kW |
| Crucible Resistance Furnace Capacity (AL) | 1,322 pounds | 600 kg |
| Plant Floor Area (L x W x H) | 276 x 216 x 216 inches | 7000 x 5500 x 6000 mm |
| Approximate Weight | 28,600 pounds | 13,000 kg |
Description
Used, Kurtz Model AL 13-13 TC 1313 For_Sale, Features Include: Two (2) Mold (Mould) Closing Cylinders, Tiltable Clamp Unit For Fast Access To Furnace, Die and Hydraulic Cooling, Crucible Resistance Furnace, PLC Control, PLC controls, second Hand, DCM-2912
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
