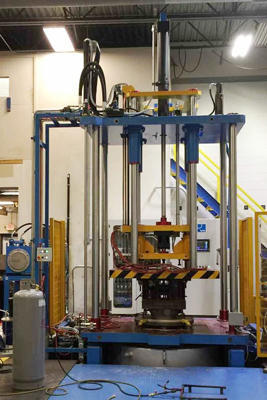

Used LPM Model: BPSC-800/8 S/M 800 Series Vertical Low Pressure Permanent Mold Aluminum Die Casting Machine
1 / 19| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | LPM |
| Model | BPSC-800/8 S/M |
| Size | 800 Series |
| Inventory Number | DCM-4107 |
LPM - BPSC-800/8 S/M 800 Series Vertical Low Pressure Permanent Mold Aluminum Die Casting Machine, LMP Controls
Questions? Call (847) 360-9170 and mention DCM-4107.
Item Specifications for DCM-4107
| US | Metric | |
| Clearance Between Tie Bars: | 73.2 inches | 1860 mm |
| Clearance Between Fixed Tie Bars: | 42.9 inches | 1090 mm |
| Tie Bar Diameter: | 4.3 inches | 110 mm |
| Upper Moving Platen Stroke: | 57 inches | 1450 mm |
| Lower Moving Platen Stroke: | 47.2 inches | 1200 mm |
| Ejection stroke: | 2.3 inches | 60 mm |
| Minimum distance between lower moving platen and upper mobile platen: | 25.5 inches | 650 mm |
| Closing force: | 26.9 tons | 240 KN |
| Opening force: | 20.2 tons | 180 KN |
| Ejection force: | 26.9 tons | 240 KN |
| Dimensions: | 9.9 x 16.7 x 6.3 feet | 3039 X 5102 X 1930 mm |
Description
Used, LPM Model BPSC-800/8 S/M 800 Series Vertical Low Pressure Permanent Mold Aluminum Die Casting Machine For_Sale, Features Include:, LMP controls, second Hand, DCM-4107
