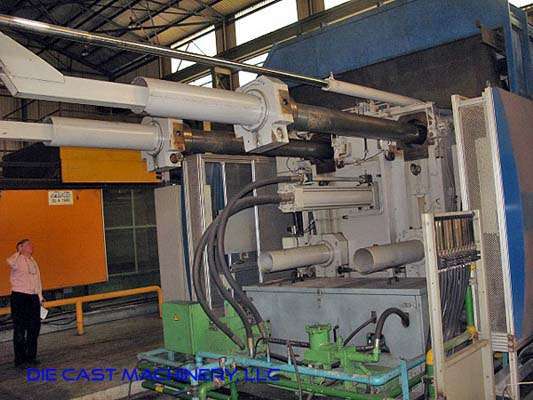

Used Buhler Model: Evolution B 140 D 14000 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | Evolution B 140 D |
| Size | 14000 kN |
| Inventory Number | DCM-2910 |
Buhler - Evolution B 140 D 14000 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Buhler Controls
View Available Cold Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-2910.
Features & Accessories
- Automatic Tie Bar Pulling - Top Two Tie Bars
- Acheson High Speed Linear Die Sprayer
- Stotek Dosotherm 1200 dosing furnace
- Esse 60 ton hydraulic trim press
Item Specifications for DCM-2910
| US | Metric | |
| Clamping Force | 1573 tons | 14,000 kN |
| Die Thickness (Minimum - Maximum) | 15.75 to 55.12 inches | 400 to 1400 mm |
| Platen Dimensions (horizontal x vertical) | 67.32 x 68.11 inches | 1710 x 1730 mm |
| Clearance between tie bars | 43.31 inches | 1100 mm |
| Moving Platen Stroke | 43.31 inches | 1100 mm |
| Maximum Injection Stroke | 35.43 inches | 900 mm |
| Injection Positions | 0 to -13.78 inches | 0 to -350 mm |
| Maximum Injection Force Intensified | 123 tons | 1,096 kN |
| Maximum Ejector Force | 44 tons | 400 kN |
| Maximum Ejector Stroke | 8.66 inches | 220 mm |
| Main Motor | 120 HP | 90 kW |
| Machine Weight | 160,937 pounds | 73,000 kg |
Description
Used, Buhler Model Evolution B 140 D 14000 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Automatic Tie Bar Pulling - Top Two Tie Bars, Acheson High Speed Linear Die Sprayer, Stotek Dosotherm 1200 dosing furnace, Esse 60 ton hydraulic trim press, Buhler controls, second Hand, DCM-2910
