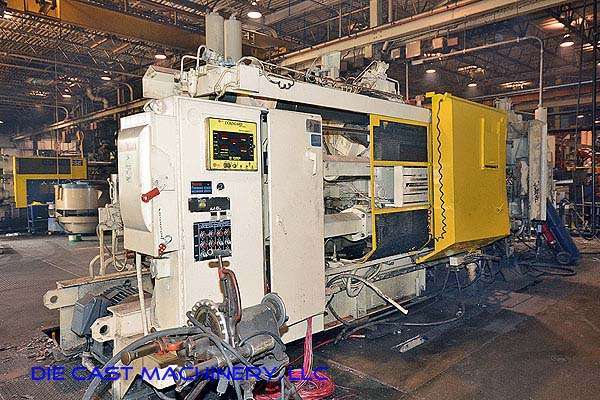

Used HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 13| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-900-A |
| Size | 900 Ton |
| Inventory Number | DCM-2647 |
HPM - II-900-A 900 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Controls
View Available Cold Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-2647.
Features & Accessories
- Top Operator Side Automatic Tie Bar Puller
- LoadGuard Electronic Tie Bar Strain Gauge Monitoring
- Hydraulic Powered Motorized Die Height Adjustment
- Hydraulic Bumper Plate Ejection System
- Two Core Circuits on Moving Platen - One on Fixed Platen
- Hydraulic Adjustment of Shot Position
Item Specifications for DCM-2647
| US | Metric | |
| Locking Force: | 900 tons | 816 tons |
| Tie Bar Diameter: | 8 inches | 203 mm |
| Clearance Between Tie Bars: | 38 x 38 inches | 965 x 965 mm |
| Die Thickness (minimum - maximum): | 16 - 40 inches | 406 - 1016 mm |
| Die Stroke (minimum - maximum): | 29 inches | 736 mm |
| Moving Platen Size: | 61 x 61 inches | 1549 x 1549 mm |
| Shot Positions: | Center, -9, -12 below center | Center, -228.6, -304.8 mm |
| Cylinder Stroke: | 23 - 29 inches | 584 - 736 mm |
| Power: | 60 HP | 44.76 kw |
| Machine Size: | 31.1 x 8.6 x 11.5 feet | 9.48 x 2.62 x 3.51 meters |
| Machine Weight: | 96,000 pounds | 43,544.9 kg |
Video
Description
Used, HPM Model II-900-A 900 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller, LoadGuard Electronic Tie Bar Strain Gauge Monitoring, Hydraulic Powered Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Two Core Circuits on Moving Platen - One on Fixed Platen, Hydraulic Adjustment of Shot Position, Allen Bradley SLC 5/03 controls, second Hand, DCM-2647
