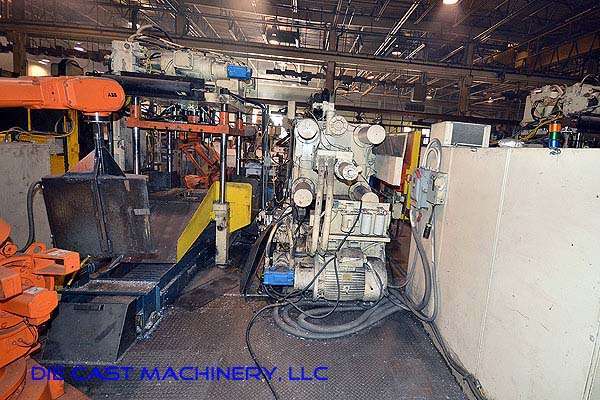

Used Italpresse Model: IP-750 SC 7360 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 20| Status | Sold |
|---|---|
| Manufacturer | Italpresse |
| Model | IP-750 SC |
| Size | 7360 kN |
| Inventory Number | DCM-2639 |
Italpresse - IP-750 SC 7360 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Siemens S-5 PLC Controls
View Available Cold Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-2639.
Features & Accessories
- Italpresse SC Shot Control using Siemens S-5 PLC Controls
- Hydraulic Bumper Plate Ejection System
- Automatic Motorized Die Height Adjustment
- Inserted Shot Position (allows for multiple shot positions)
- Central Automatic Lubrications System
Item Specifications for DCM-2639
| US | Metric | |
| Locking Force: | 825 tons | 7,360 kN |
| Tie Bar Diameter: | 6.49 inches | 165 mm |
| Clearance Between Tie Bars: | 30.51 x 30.51 inches | 775 x 775 mm |
| Die Thickness (minimum - maximum): | 15.15 - 37.00 inches | 385 - 940 mm |
| Die Stroke (maximum): | 29.52 inches | 750 mm |
| Moving Platen Size: | 49.40 x 49.40 inches | 1255 x 1255 mm |
| Shot Positions: | Inserted, multi-positions | Inserted, multi-positions |
| Shot Stroke: | 22.8 inches | 580 mm |
| Central Ejection Stroke: | 7.08 inches | 180 mm |
| Power: | 480/3/60 - 50 HP | 480/3/60 - 37 kw |
| Machine Size: | 28.2 x 8.5 feet | 8.604 x 2.50 m |
| Machine Weight: | 72,600 pounds | 33,000 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, Italpresse Model IP-750 SC 7360 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Italpresse SC Shot Control using Siemens S-5 PLC Controls, Hydraulic Bumper Plate Ejection System, Automatic Motorized Die Height Adjustment, Inserted Shot Position (allows for multiple shot positions), Central Automatic Lubrications System, Siemens S-5 PLC controls, second Hand, DCM-2639
