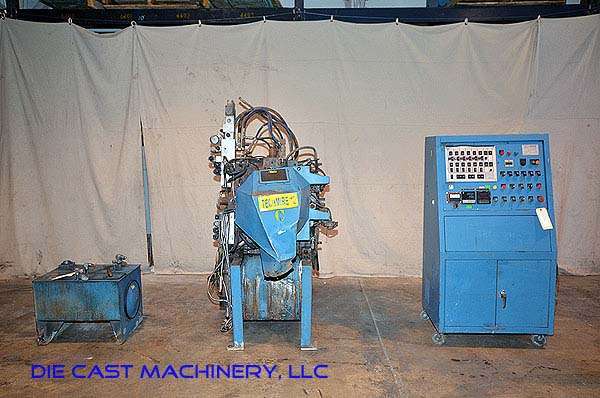

Used Techmire Model: 22H 8 Metric Ton
1 / 19| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 22H |
| Size | 8 Metric Ton |
| Inventory Number | DCM-2633 |
Techmire - 22H 8 Metric Ton , Techmire Controls
View Available Hot Chamber Multi-Slide
Questions? Call (847) 360-9170 and mention DCM-2633.
Features & Accessories
- Four (4) Standard Die Motions Capability
Item Specifications for DCM-2633
| US | Metric | |
| Standard Die Size: | 2 x 2 inches | 50.8 x 50.8 mm |
| Injection Capacity: | 4.8 ounces | 137 grams |
| Plunger Diameter: | 1 inch | 24.5 mm |
| Maximum Injection Pressure: | 1600 psi | 110.32 bars |
| Maximum Hydraulic Line Pressure: | 2000 psi | 138 bars |
| Stroke of each Die Member: | .75 inches | 19 mm |
| Total Die Opening: | 1.5 inches | 38 mm |
| Clamping Force: | 9 tons | 8.16 tons |
| Machine Weight: | 2800 pounds | 1271 KG |
| Floor Space Required: | 22 square feet | 2.04 square meters |
Description
Used, Techmire Model 22H 8 Metric Ton For_Sale, Features Include:, Techmire controls, second Hand, DCM-2633
