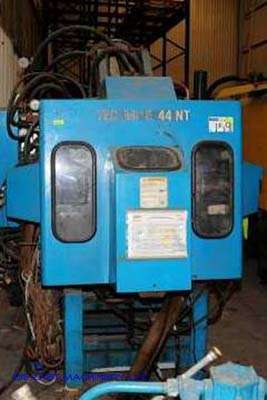

Used Techmire Model: 44NT 18 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 44NT |
| Size | 18 Metric Ton |
| Inventory Number | DCM-2249 |
Techmire - 44NT 18 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine, Techmire Controls
View Available Hot Chamber Multi-Slide
Questions? Call (847) 360-9170 and mention DCM-2249.
Item Specifications for DCM-2249
| US | Metric | |
| Standard Die Size: | 4 x 4 inch | 101.6 x 101.6 mm |
| Standard Die Stroke of Each Die Slide: | 2 inches | 50.8 mm |
| Maximum Ejector Stroke: | 1.75 inches | 44.4 mm |
| Standard Total Die Opening: | 4 inches | 101.6 mm |
| Injection Plunger Diameter: | 1.625 inches | 41.27 mm |
| Injection Cylinder Diameter: | 3.25 inches | 82.55 mm |
| Injection Plunger Stroke: | 2.38 inches | 60 mm |
| Dry Shot Speed at 900 psi: | 55 inches/sec | 1.43 m/sec |
| Clamping Force: | 19.8 Tons | 18 Metric Tons |
| Metal Pressure (maximum theoretical): | 3,519 psi | 243 bars |
| Injection Capacity (maximum theoretical): | 495 g | 17.5 ounces |
| Floor Space Required: | 11.1 x 7.25 feet | 3.4 x 2.2 m |
Description
Used, Techmire Model 44NT 18 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include:, Techmire controls, second Hand, DCM-2249
