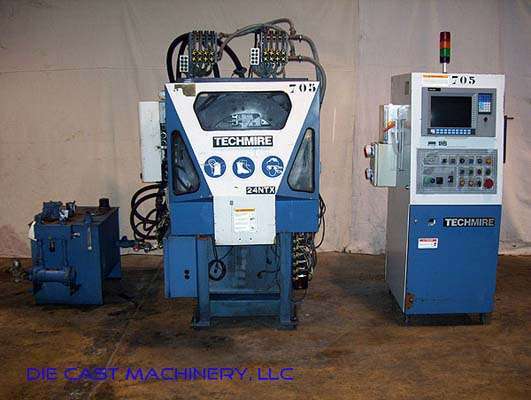

Used Techmire Model: 24NTX 7 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 24NTX |
| Size | 7 Metric Ton |
| Inventory Number | DCM-2173 |
Techmire - 24NTX 7 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine, Techmire Controls
View Available Hot Chamber Multi-Slide
Questions? Call (847) 360-9170 and mention DCM-2173.
Features & Accessories
- Four Slide
Item Specifications for DCM-2173
| US | Metric | |
| Standard Die Size | 2.5 x 4 inches | 65 x 100 mm |
| Adjustable Ejector Stroke | 0.375 - 0.720 inches | 9.53 - 18.29 mm |
| Total Die Opening | 3 inches | 76.2 mm |
| Injection Plunger Diameter | 1 inch | 25.4 mm |
| Injection Cylinder Diameter | 2 inches | 50.8 mm |
| Injection Plunger Stroke | 2.36 inches | 60 mm |
| Dry Shot Speed at 1000 psi | 150 ips | 3.81 m/sec |
| Injection Capacity (maximum theoretical) | 6.6 oz | 187 g |
| Maximum Shot Weight | 3.3 oz | 93 g |
| Metal Pressure (maximum theoretical) | 4,000 psi | 275.8 bars |
| Clamping Force | 7.9 tons | 7.2 tons |
| Dry Cycle Speed | 75 cpm | 75 cpm |
Video
Description
Used, Techmire Model 24NTX 7 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include:, Techmire controls, second Hand, DCM-2173
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
