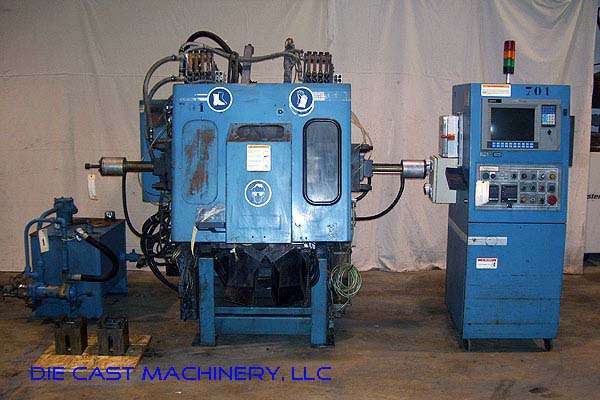

Used Techmire Model: 66NT (6x6) 45 US Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
1 / 18| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 66NT (6x6) |
| Size | 45 US Ton |
| Inventory Number | DCM-2171 |
Techmire - 66NT (6x6) 45 US Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine, Techmire NT Controls
View Available Hot Chamber Multi-Slide
Questions? Call (847) 360-9170 and mention DCM-2171.
Features & Accessories
- Techmire 66 NT Controls
- Techmire 30 KW Electric Melting Furnace (pot type) 400 pound - 180 KG Capacity
- Two Slide Motions - Expandable up to six motions
- 15 Horsepower - 11.19 KW Main Pump Motor
- Trabon Pressurized Automatic Lubrication System
- Techmire 66 NT (6x6) Die Casting Machines manufactured in Montreal, Quebec Canada
Item Specifications for DCM-2171
| US | Metric | |
| Standard Die Size | 6.3 x 6.3 inches | 160 x 160 mm |
| Clamping Force | 45 tons | 40 tons |
| Stroke of Each Die Member | 3.15 | 80 mm |
| Total Die Opening | 6.3 inches | 160 mm |
| Maximum Ejector Stroke | 1.75 inches | 44.4 mm |
| Injection Plunger Diameter | 1.57 - 1.625 inches | 40.0 - 41.27 mm |
| Injection Cylinder Diameter | 3.25 inches | 82.55 mm |
| Injection Plunger Stroke | 2.38 inches | 60 mm |
| Dry Shot Speed at 900 psi | 55 ips | 1.43 m/sec |
| Maximum Shot Weight (zinc) | 11 oz | 320 grams |
| Metal Pressure (maximum theoretical) | 4,685 psi | 323 bars |
| Dry Cycle Speed | 45 cpm | 45 cpm |
Video
Description
Used, Techmire Model 66NT (6x6) 45 US Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Techmire 66 NT Controls, Techmire 30 KW Electric Melting Furnace (pot type) 400 pound - 180 KG Capacity, Two Slide Motions - Expandable up to six motions, 15 Horsepower - 11.19 KW Main Pump Motor, Trabon Pressurized Automatic Lubrication System, Techmire 66 NT (6x6) Die Casting Machines manufactured in Montreal, Quebec Canada, Techmire NT controls, second Hand, DCM-2171
