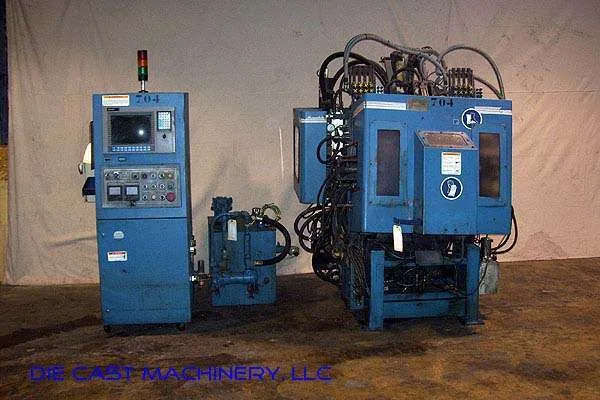

Used Techmire Model: 44NT 18 Metric Ton
1 / 18| Status | Sold |
|---|---|
| Manufacturer | Techmire |
| Model | 44NT |
| Size | 18 Metric Ton |
| Inventory Number | DCM-2169 |
Techmire - 44NT 18 Metric Ton , Techmire Controls
View Available Hot Chamber Multi-Slide
Questions? Call (847) 360-9170 and mention DCM-2169.
Features & Accessories
- Four Slide
- Techmire Solid State Programmable Controls
Item Specifications for DCM-2169
| US | Metric | |
| Standard Die Size | 4 x 4 inches | 101.6 x 101.6 mm |
| Maximum Ejector Stroke | 1.75 inches | 44.4 mm |
| Total Die Opening | 4 inches | 101.6 mm |
| Injection Plunger Diameter | 1.625 inches | 41.27 mm |
| Injection Cylinder Diameter | 3.25 inches | 88.55 mm |
| Injection Plunger Stroke | 2.38 inches | 60 mm |
| Dry Shot Speed at 900 psi | 55 inches per second | 1.43 m/sec |
| Injection Capacity (maximum theoretical) | 17.5 oz | 495 g |
| Maximum Shot Weight | 9.3 oz | 265 g |
| Metal Pressure (maximum theoretical) | 3,519 psi | 243 bars |
| Clamping Force | 19.8 tons | 18 tons |
| Dry Cycle Speed | 60 cycles per minute | 60 cycles per minute |
Description
Used, Techmire Model 44NT 18 Metric Ton For_Sale, Features Include: Four Slide, Techmire Solid State Programmable Controls, Techmire controls, second Hand, DCM-2169
