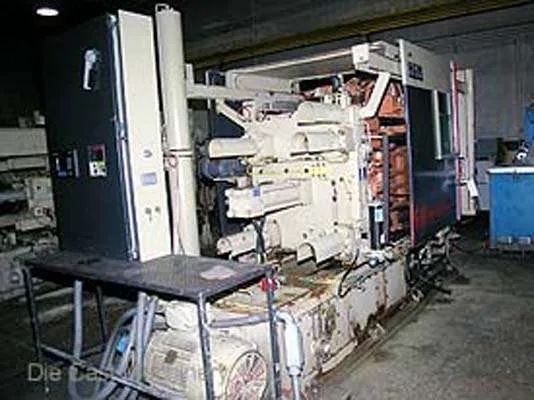

Used HPM Model: II-400-A 400 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 8| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-400-A |
| Size | 400 Ton |
| Inventory Number | DCM-1786 |
HPM - II-400-A 400 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Controls
View Available Cold Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-1786.
Features & Accessories
- Rebuilt by HPM/Taylor in 2006
- Three Core Circuits
- Hydrauilc Bumper Platen Ejection System
- Allen Bradley SLC 5/03 Controls
- Motorized Die Height Adjustment
Item Specifications for DCM-1786
| US | Metric | |
| Clamping (Locking) Force: | 400 tons | 363 tons |
| Tie Bar Diameter: | 5 inches | 127 mm |
| Clearance between Tie Bars (H x V): | 24 x 24 inches | 609 x 609 mm |
| Moving Platen Size (H x V x T): | 39 x 43.7 x 7.75 inches | 990 x 1109 x 196 mm |
| Stationary (Fixed) Platen Size (H x V x T): | 39 x 42.7 x 8.25 inches | 990 x 1084 x 209 mm |
| Die Thickness (minimum to maximum): | 12 - 30 inches | 304 - 762 mm |
| Die Stroke: | 15 inches | 381 mm |
| Shot Cylinder Stroke: | 18.5 inches | 470 mm |
| Rated Dry Cycles Per Hour: | 375 | 375 |
| Main Motor: | 40 hp | 30 kw |
| Overall Size: | 6.7 x 21.4 x 9.8 feet | 2.04 x 6.52 x 2.99 meters |
| Weight: | 34,000 pounds | 15,454 kg |
Description
Used, HPM Model II-400-A 400 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Rebuilt by HPM/Taylor in 2006, Three Core Circuits, Hydrauilc Bumper Platen Ejection System, Allen Bradley SLC 5/03 Controls, Motorized Die Height Adjustment, Allen Bradley SLC 5/03 controls, second Hand, DCM-1786
