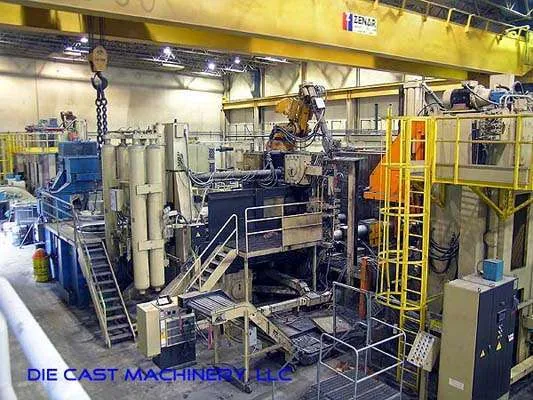

Used Idra Model: OL-4000 4000 Metric Ton Horizontal Cold Chamber Magnesium High Pressure Die Casting Machine
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Idra |
| Model | OL-4000 |
| Size | 4000 Metric Ton |
| Inventory Number | DCM-1718 |
Idra - OL-4000 4000 Metric Ton Horizontal Cold Chamber Magnesium High Pressure Die Casting Machine, Allen Bradley PLC 5 Series Controls
View Available Cold Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-1718.
Features & Accessories
- Dual Automatic Tie Bar Pulling - Top Two Tie Bars
- Fully Proportional Shot Control System
- ABB Six Axis Robotic Spraying, ABB Seven Axis Robotic Extraction
- Idra Automatic Quick Die Clamping - Moving & Stationary Plates
- Allen Bradley PLC 5 Series Controls
- Idra Tilt-Bed Automatic Trimming Presses
Item Specifications for DCM-1718
| US | Metric | |
| Clamping Force: | 4,406 Tons | 4,000 Tons |
| Opening Force: | 1,012 Tons | 918 Tons |
| Maximum Die Thickness: | 82.7 Inches | 2100 mm |
| Minimum Die Thickness: | 44.0 Inches | 1117 mm |
| Platen Dimensions (horizontal x vertical): | 110.24 x 110.24 inches | 2800 x 2800 mm |
| Clearance between tie bars: | 70.08 inches | 1780 mm |
| Tie Bar Diameter: | 13.39 inches | 340 mm |
| Moving Platen Stroke: | 62.99 inches | 1600 mm |
| Maximum Injection Stroke: | 54.02 inches | 1372 mm |
| Maximum Injection Force: | 266 Tons | 241 Tons |
| Maximum Ejector Force: | 89.7 Tons | 81 Tons |
| Maximum Ejector Stroke: | 11.02 Inches | 280 mm |
Video
Description
Used, Idra Model OL-4000 4000 Metric Ton Horizontal Cold Chamber Magnesium High Pressure Die Casting Machine For_Sale, Features Include: Dual Automatic Tie Bar Pulling - Top Two Tie Bars, Fully Proportional Shot Control System, ABB Six Axis Robotic Spraying, ABB Seven Axis Robotic Extraction, Idra Automatic Quick Die Clamping - Moving & Stationary Plates, Allen Bradley PLC 5 Series Controls, Idra Tilt-Bed Automatic Trimming Presses, Allen Bradley PLC 5 Series controls, second Hand, DCM-1718
