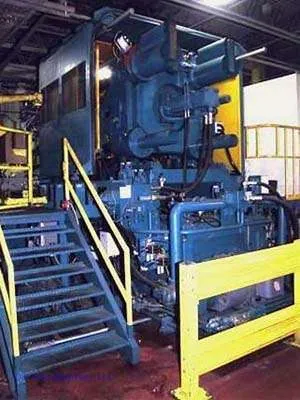

Used Ube Model: 800 HVSC 800 Metric Ton Horizontal Clamp Vertical Shot (HVSC) Cold Chamber Aluminum Squeeze Cast/Semi-Solid Die Casting Machine
1 / 12| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Ube |
| Model | 800 HVSC |
| Size | 800 Metric Ton |
| Inventory Number | DCM-1417 |
Ube - 800 HVSC 800 Metric Ton Horizontal Clamp Vertical Shot (HVSC) Cold Chamber Aluminum Squeeze Cast/Semi-Solid Die Casting Machine, Allen Bradley Controls
View Available Semi-Solid Machines
Questions? Call (847) 360-9170 and mention DCM-1417.
Features & Accessories
- Ube RRS-8 Slurry Production Equipment
- Robot for Slurry Loading
- Ube auto-lade, Ube Sprayer, Robot for Extracting Castings
- This is a Horizontal Clamp, Vertical Docking Shot Machine
Item Specifications for DCM-1417
| US | Metric | |
| Locking Force: | 881 tons | 800 tons |
| Tie Bar Diameter: | 7 inches | 180 mm |
| Clearance Between Tie Bars: | 33.46 inches | 850 x 850 mm |
| Die Thickness: | 21.65 x 37.4 inches | 550 - 950 mm |
| Die Stroke: | 29.92 inches | 760 mm |
| Moving Platen Size: | 53 x 53 inches | 1350 x 1350 mm |
| Shot Position (From Bottom of Die Setting surface to Center of Sleeve): | 9.84 inches | 250 mm |
| Shot Cylinder Stroke: | 29.53 inches | 750 mm |
| Shot Force: | 103.34 tons | 105 tons |
| Shot Speed: | 1.18 - 59 inches/sec | 30 - 1500 mm/sec |
| Machine Size (L x W x H): | 23 x 15 x 14 feet | 7 x 4.5 x 4.27 meters |
| Machine Weight: | 57 tons | 51.71 tons |
Video
Description
Used, Ube Model 800 HVSC 800 Metric Ton Horizontal Clamp Vertical Shot (HVSC) Cold Chamber Aluminum Squeeze Cast/Semi-Solid Die Casting Machine For_Sale, Features Include: Ube RRS-8 Slurry Production Equipment, Robot for Slurry Loading, Ube auto-lade, Ube Sprayer, Robot for Extracting Castings, This is a Horizontal Clamp, Vertical Docking Shot Machine, Allen Bradley controls, second Hand, DCM-1417
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
